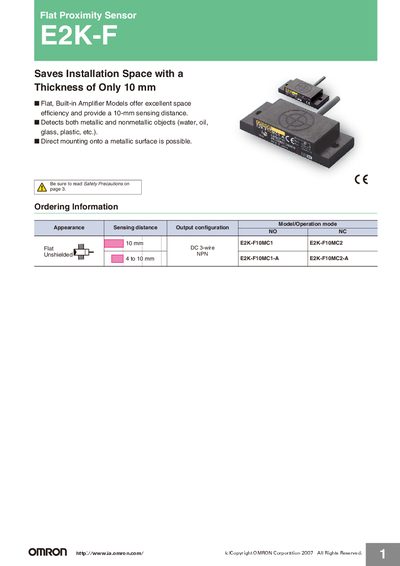

Omron E2K-F Flat Proximity Sensor Handbook
This handbook covers the ratings and specifications of the Omron E2K-F flat proximity sensor, including adjustable sensing distance, power requirements, environmental limits, and protection ratings. It also provides detailed safety precautions, wiring diagrams, and instructions for mounting and sensitivity adjustment.
Additional sections describe mutual interference considerations, operating environment restrictions, maintenance procedures, and warranty information, helping users install and maintain the sensor safely and reliably in industrial automation applications.
Omron E2K-F specifications
| Detection distance | 10 mm (adjustable 4–10 mm) |
|---|---|
| Supply voltage | DC12–24 V |
| Power consumption | <10 mA at 24 V |
| Output switch capacity | 100 mA (DC30 V) |
| Operating temperature range | -10 °C to +55 °C |
| Humidity range | 35 %–85 % RH |
| Insulation resistance | ≥50 MΩ |
| Protection rating | IP64, IP66 |
| Housing material | ABS (heat‑resistant) |
| Weight (packed) | ≈35 g |
| Cable type | Wired, 2 m standard cable |
Source: Omron E2K-F10MC Flat Type Electrostatic Capacitance Sensor Product Manual
All Omron E2K-F documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What supply voltage should be used with the E2K-F10MC sensor?
The sensor operates on a DC supply of 12 to 24 volts.
From: Omron E2K-F10MC Flat Type Electrostatic Capacitance Sensor Product Manual
What is the maximum detection distance of the sensor?
The nominal detection distance is 10 mm, adjustable between 4 mm and 10 mm.
From: Omron E2K-F10MC Flat Type Electrostatic Capacitance Sensor Product Manual
What is the adjustable sensing distance range for the E2K-F sensor?
The sensor’s sensing distance can be set from 4 mm to 10 mm using the 12‑turn sensitivity adjuster.
What power supply voltage does the E2K-F require?
It operates on a DC supply of 12 to 24 V (10 to 30 V allowed).
