Start here

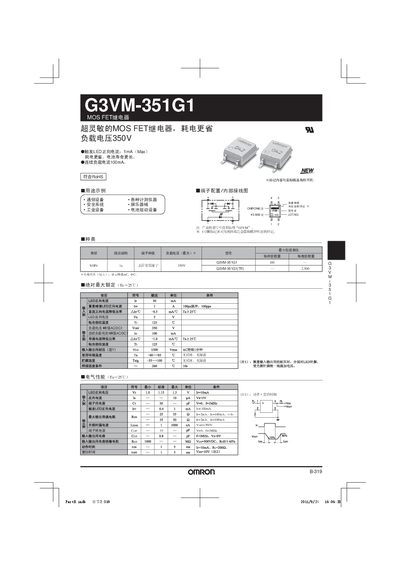

Omron G3VM-351G1 MOS FET Relay Manual
The G3VM-351G1 is an ultra‑sensitive MOS FET relay designed for low power consumption and long battery life. It features a load voltage rating of 350 V and a continuous load current of 100 mA, making it suitable for battery‑driven devices and measurement instruments.
The document lists detailed electrical specifications, recommended operating temperature ranges (‑35 °C to 100 °C), LED forward current limits, and input‑output withstand voltages. It also includes general precautions and reference data to ensure correct operation and reliable reset of the relay. This manual is written in Chinese.
Omron G3VM-351G specifications
| Current limit | 150–300 mA |
|---|---|
| LED forward current | 350 mA |
| Continuous load current (peak AC/DC) | 120 mA |
All Omron G3VM-351G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the current limit of the G3VM-351GL relay?
The relay limits current to between 150 mA and 300 mA.
How should the terminals be wired?
Refer to the internal wiring diagram provided in the document for correct terminal connections.
What is the maximum load voltage for the G3VM-351G1 relay?
The relay can handle a maximum load voltage of 350 V.
What continuous load current is the relay rated for?
It is rated for a continuous load current of 100 mA.
What is the continuous load current rating of the G3VM-351G relay?
The relay can handle a continuous load current of 110 mA.
What isolation voltage is provided between the input and output terminals?
The isolation voltage between input and output is rated at 1500 V rms.
