Start here

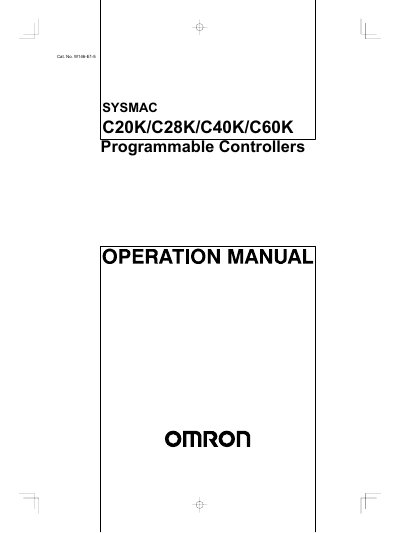

Omron SYSMAC C20K/C28K/C40K/C60K Programmable Controllers Operation Manual
This manual is intended for engineers and technicians who install, program, and maintain Omron SYSMAC C20K, C28K, C40K, and C60K K‑type programmable controllers. It covers safety and general precautions, hardware configuration, memory organization, ladder‑diagram programming, instruction sets, execution timing, debugging, and troubleshooting.
The document includes detailed appendices with standard model specifications, peripheral devices, programming console information, and wiring diagrams. It also lists revision history and reference tables for quick lookup of instruction codes and error messages.
Omron SYSMAC-C20 specifications
| Power supply voltage | 12–24 VDC |
|---|---|
| Input resistance | 1 kΩ |
| Number of axes | 1 axis |
Source: OMRON SYSMAC C200H-NC112 Position Control Unit Operation Manual
