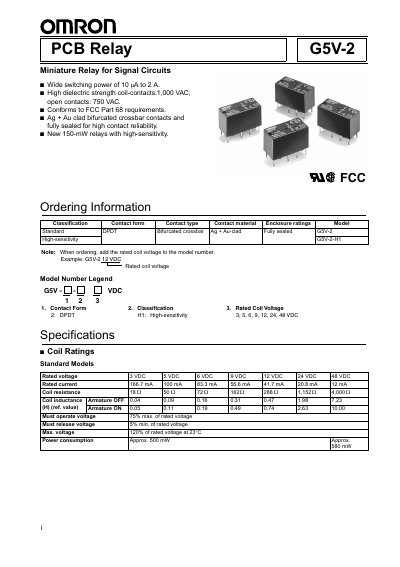

Omron G5V-2 PCB Relay Datasheet
Datasheet 4 pages · 513 KB · EN
The document provides technical data for the Omron G5V-2 PCB Relay, a miniature device designed for signal circuits. It covers two main variants: Standard Models and High-Sensitivity (G5V-2-H1) models, both featuring DPDT contact forms with bifurcated crossbar Ag + Au-clad contacts.
Read onlineOmron G5V-2 specifications
| Switching Power Range | 10 µA to 2 A |
|---|---|
| Dielectric Strength (Coil-Contacts) | 1,000 VAC |
| Contact Form | DPDT |
| Coil Voltage Range | 3 to 48 VDC |
| Max Switching Voltage (Standard) | 125 VAC |
| Max Switching Current (Standard) | 2 A |
| Endurance (Mechanical) | 15,000,000 operations min. |
Source: Omron G5V-2 PCB Relay Datasheet
All Omron G5V-2 documents by type
Service Manual 1
Disassembly, diagnostics and part numbers, for repair.
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the contact material for the G5V-2 relay?
The contacts are made of Ag + Au-clad bifurcated crossbar.
Does the G5V-2 relay conform to FCC requirements?
Yes, it conforms to FCC Part 68 requirements.
What is the contact rating of the G5V-2 relay?
The relay is rated for a contact current of 10 mA to 2 A.
What are the maximum voltage ratings for the G5V-2?
It can handle up to 1 kV AC (1.000 kV) and 750 V AC on the same contacts.
