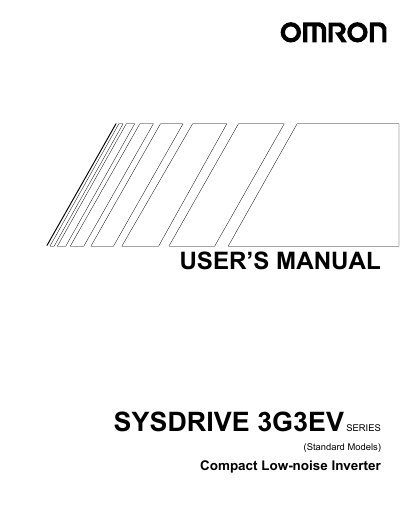

Omron SYSDRIVE 3G3EV Series User Manual
This manual introduces the SYSDRIVE 3G3EV compact low‑noise inverter, covering safety warnings, unpacking checks, and basic features. It explains precautions for handling high‑voltage parts, residual voltage, and the importance of not opening the cover.
Detailed sections guide users through installation, wiring, configuration of constants, operation procedures, and troubleshooting of common faults. Specifications, component lists, and appendix information for accessories such as braking resistors and DIN tracks are also included.
Omron SYSDRIVE 3G3EV specifications
| Rated voltage and frequency | Three-phase, 200 to 230 VAC, 50/60 Hz |
|---|---|
| Maximum applicable motor capacity | 0.1 – 1.5 kW |
| Rated output current | 0.8 – 7.0 A |
| Cooling method | Self‑cooling |
| Maximum output frequency | 400 Hz |
All Omron SYSDRIVE 3G3EV documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precaution must be taken before opening the inverter?
The cover must never be opened because the product contains potentially dangerous parts that can cause injury or death.
How should the digital operator be removed safely?
The main circuit must be turned off before removing the digital operator to avoid electrical shock and equipment damage.
