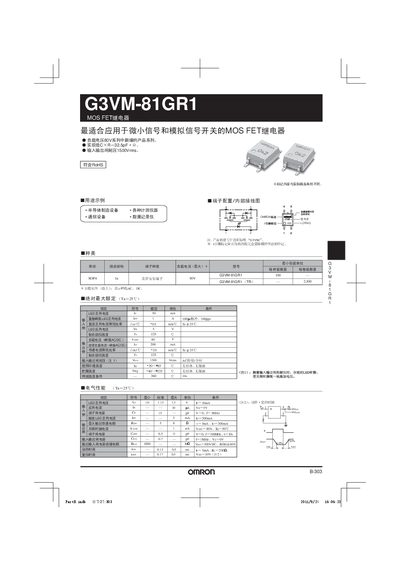

Omron G3VM-81GR1 MOS FET Relay Datasheet
Datasheet 2 pages · 490 KB · ZH
The G3VM-81GR1 is an Omron MOS FET relay designed for switching very small analog and signal loads. It features a low gate‑charge of 2.5 pF and an input‑output dielectric voltage rating of 1500 Vrms.
The document lists key electrical characteristics such as a maximum load voltage of 80 V, LED forward current range of 5‑30 mA, continuous load current up to 200 mA, on‑resistance of 8‑9 mΩ, and recommended operating temperature conditions. This manual is written in Chinese.
Omron G3VM-81GR specifications
| Maximum Load Voltage | 80 V |
|---|---|
| Input‑Output Dielectric Voltage | 1500 Vrms |
| LED Forward Current | 5 – 30 mA |
| Continuous Load Current (peak AC/DC) | 200 mA |
| On‑Resistance (R_on) | 8 – 9 mΩ |
| Input‑Output Capacitance | 2.5 pF |
| LED Reverse Voltage | 5 V |
All Omron G3VM-81GR documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum load voltage for the G3VM-81GR1?
The relay is rated for a maximum load voltage of 80 V.
What is the input‑output dielectric voltage rating?
The input‑output dielectric voltage rating is 1500 Vrms.
What is the maximum load voltage for the G3VM-81GR?
The maximum load voltage is 80 V.
What is the typical actuation and release time?
Typical actuation and release time is 0.07 ms.
