Key facts
- Brand
- Omron
- Model
- ZFX-C20
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-19
Start here

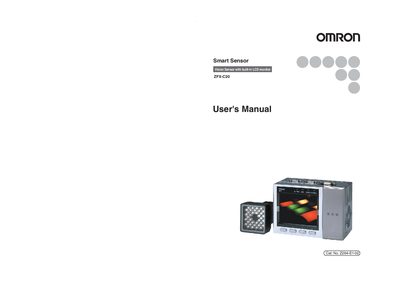

Omron ZFX-C20 Smart Sensor Vision Sensor User Manual
This manual introduces the ZFX-C20 Smart Sensor Vision Sensor, describing its functions, performance and basic operating methods. It includes safety warnings, warranty information, and guidance on proper handling and environmental limits.
Detailed sections cover installation requirements, power‑supply specifications, wiring instructions, mounting torque, maintenance procedures, and the full set of configuration options. Appendices list error messages, version‑upgrade details, and revision history for the product.
Omron ZFX-C20 specifications
| USB speed | 12 Mbps (Full speed, USB2.0 compliant) |
|---|---|
| RS‑232C/422 maximum speed | 115200 bps |
| RS‑232C/422 data length | 7 bits, 8 bits |
| RS‑232C/422 parity options | None, even, odd |
| RS‑232C/422 stop bits | 1 bit, 2 bits |
| Ethernet transmission mode | Peer to Peer |
| Data delimiter | CR, LF, CR+LF |
| Transmission code | ASCII (binary optional for measurement values) |
Source: Omron ZFX-C20 Vision Sensor Serial Communication Command Reference
All Omron ZFX-C20 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
How can I connect the ZFX-C20 to a PC via USB?
Use a USB cable (ZFX‑XUSB) to connect the controller to the PC, attach the supplied ferrite cores, and install the USB driver the first time you use the interface.
From: Omron ZFX-C20 Vision Sensor Serial Communication Command Reference
What baud rates are supported by the RS‑232C/422 interface?
The RS‑232C/422 interface supports 9600, 19200, 38400, 57600 and 115200 bps communication speeds.
From: Omron ZFX-C20 Vision Sensor Serial Communication Command Reference
What power supply voltage is required for the ZFX-C20?
The sensor requires a DC power supply of approximately 24 V (21.6 V to 26.4 V).
What torque should be used when tightening the mounting screws?
Mounting screws must be tightened to a torque of 0.22 – 0.25 N·m.
