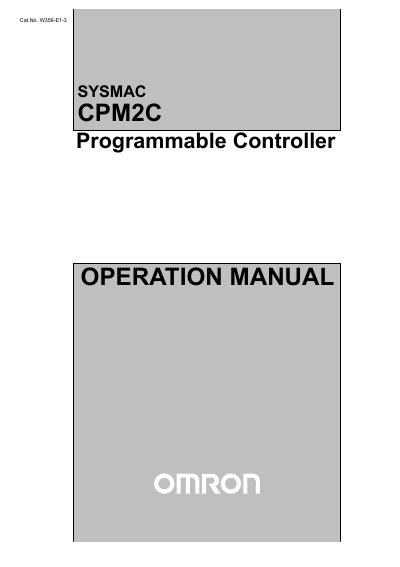

Omron CPM2C Programmable Controller Operation Manual
This operation manual for the Omron CPM2C programmable controller provides safety guidelines, system configuration, and basic operating instructions. It is intended for engineers and technicians responsible for installing, designing, and managing factory automation (FA) systems.
The manual covers specifications, unit components, installation and wiring, programming software (SYSMAC and SYSMAC‑CPT), test runs, troubleshooting, expansion memory, and the simple communications unit, with appendices for dimensions and data‑setting sheets.
All Omron CPM2C documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Who is the intended audience for the CPM2C operation manual?
The manual is intended for personnel in charge of installing, designing, and managing factory‑automation systems who have knowledge of electrical systems.
What safety step must be taken before working on a CPM2C unit?
Power must be turned off before attempting any disassembly or wiring work to avoid electric shock.
What does the Z\DANGER symbol indicate?
It indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
What does the abbreviation PC stand for in this manual?
PC means Programmable Controller.
What safety precaution is required when connecting the power supply ground terminal?
Connect the ground terminal of the Power Supply Unit (CPM2C-PA201) to a ground or 100 Ω or less.
Which software packages are introduced in the manual?
The manual introduces the SYSMAC Support Software (SSS) and the SYSMAC‑CPT Support Software.
