Start here

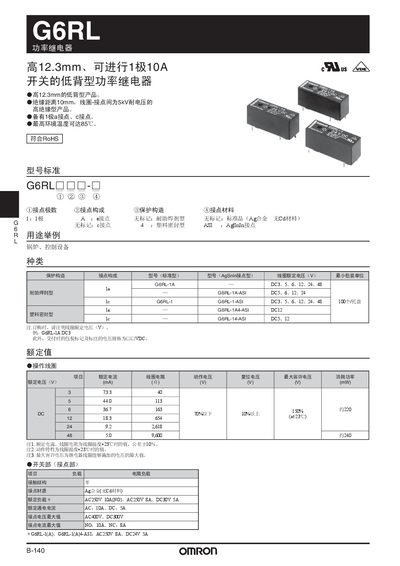

OMRON G6GL power relay Manual
The G6RL series are low‑profile power relays with a 12.3 mm height, designed for applications such as boilers and control equipment. They feature high insulation distances (10 mm) and a coil‑to‑contact voltage rating of up to 5 kV.
The document lists detailed electrical ratings, mechanical life data, environmental limits and certification information (UL, VDE, EN). It also includes terminal arrangement diagrams and notes on proper usage, especially for outdoor, high‑reliability or safety‑critical installations. This manual is written in Chinese.
Omron G6RL specifications
| Contact resistance | ≤ 100 mΩ |
|---|---|
| Operating time | ≤ 10 ms |
| Reset time | ≤ 5 ms |
| Insulation resistance | ≥ 1 000 MΩ |
| Rated load (AC) | 10 A (NO), 8 A (NC) |
| Operating temperature range | -40 °C to +80 °C |
| Weight | ≈ 7.88 g |
All Omron G6RL documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum contact resistance of the G6RL relay?
The contact resistance is specified as 100 mΩ or less.
What are the environmental temperature limits for the G6RL relay?
The relay can operate from –40 °C up to +80 °C.
What is the maximum switching capacity of the G6RL relay?
The G6RL relay can switch up to 2,500 VA in the normally‑open (NO) contact configuration.
What coil voltage options are available for the G6RL series?
Coil voltages are offered at 3 VDC, 5 VDC, 6 VDC, 12 VDC, 24 VDC, and 48 VDC.
What coil voltages are available for the G6RL relay?
The relay can be supplied with DC3, DC5, DC6, DC12, DC24 or DC48 volts.
What is the maximum contact rating for the G6RL relay?
The contacts are rated for AC250 V at 8 A (both NO and NC) and DC30 V at 5 A.
