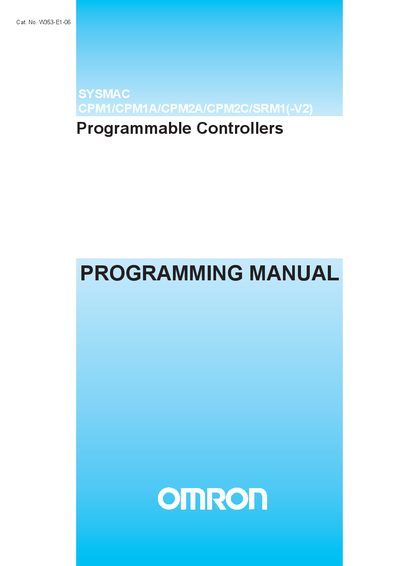

Omron CPM1/CPM1A/CPM2A/CPM2C/SRM1(-V2) Service Manual
This manual provides detailed information for qualified operators of Omron programmable controllers CPM1, CPM1A, CPM2A, CPM2C, and SRM1(-V2). It includes safety precautions, system setup, programming features, expansion unit usage, and troubleshooting guidance.
The document is organized into sections such as PC Setup, Special Features, Expansion Units, Communications Functions, Ladder‑diagram programming, and Appendices with reference tables, error codes, and memory area details. It serves as a comprehensive reference for installation, programming, maintenance, and repair of the listed controllers.
All Omron CPM1 documents by type
Disassembly, diagnostics and part numbers, for repair.
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
What does the Z\DANGER symbol indicate?
It indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
What does the abbreviation PC stand for in this manual?
PC means Programmable Controller.
How is the SRM1 described in the manual?
The SRM1 is a specialized programmable controller, normally called a CompoBus/S Master Control Unit, but it is programmed the same way as the other controllers.
