Start here

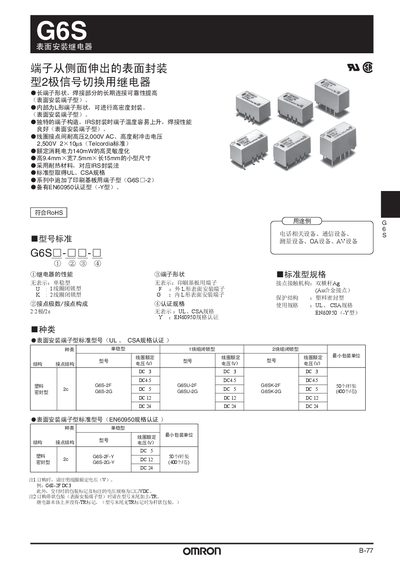

Omron G6S Surface Mount Relay Manual
This manual describes the G6S series surface‑mount relays, including single‑stable, 1‑coil lock, and 2‑coil lock variants. It lists the electrical ratings, mechanical dimensions, and certification types (UL, CSA, EN60950) for each model.
The document also gives recommended solder‑paste thickness, packaging options (rod or tape‑and‑reel), environmental limits, and test procedures for contact resistance, insulation resistance, and durability. This manual is written in Chinese.
Omron G6S specifications
| Relay Function (Single-side Stable) | None: Single-side stable |
|---|---|
| Contact Form | DPDT |
| Dimensions (L x W x H) | 15 x 7.5 x 9.4 mm |
| Power Consumption (Single-side Stable) | Approx. 140 mW |
| Dielectric Strength (Coil to Contacts) | 2,000 VAC |
| Max. Switching Voltage (Resistive Load) | 250 VAC, 220 VDC |
| Endurance (Mechanical) | 100,000,000 operations min. |
All Omron G6S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated coil voltage range?
The available rated coil voltages are 4.5 VDC, 5 VDC, 12 VDC, and 24 VDC.
What is the maximum operating frequency?
The mechanical endurance allows for up to 36,000 operations per hour.
How many relays are included per reel?
Each reel contains 400 relays, with a minimum order of 2 reels (800 relays).
