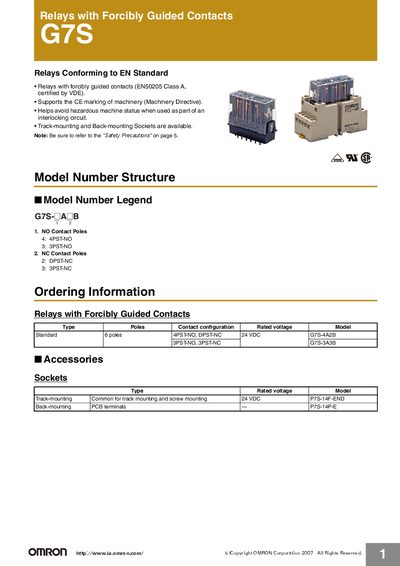

OMRON G7S Relay With Forcibly Guided Contacts User Manual
The OMRON G7S series provides relays with forcibly guided contacts that meet EN50205 Class A and VDE certification. The manual details the model variants, electrical ratings, mechanical durability, and available socket accessories for both track‑mounting and back‑mounting applications.
Safety precautions, wiring guidelines, and installation instructions are included to ensure reliable operation in industrial control circuits. The document also lists environmental limits, handling recommendations, and warranty information.
Omron G7S specifications
| Power consumption | ≈ 0.8 W |
|---|---|
| Contact rating (resistive load) | 240 VAC 3 A, 24 VDC 3 A |
| Carry current | 6 A |
| Maximum switching voltage | 250 VAC, 24 VDC |
| Maximum switching current | 6 A |
| Mechanical durability | 18,000 operations/h |
| Electrical durability | 100,000 operations min. |
| Ambient operating temperature | -25 °C to 70 °C |
| Weight | ≈ 65 g |
Source: OMRON G7S Relay With Forcibly Guided Contacts User Manual
All Omron G7S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum switching current the G7S can handle?
The relay can switch up to 6 A of current.
From: OMRON G7S Relay With Forcibly Guided Contacts User Manual
What wire size should be used for connecting the P7S‑14F‑END socket?
Use stranded wire 0.75 mm to 1.5 mm or solid wire 1.0 mm to 1.5 mm in diameter.
From: OMRON G7S Relay With Forcibly Guided Contacts User Manual
What is the maximum contact voltage for the G7SA safety relay?
The maximum contact voltage is AC250 V and DC125 V.
What wire size should be used for the P7SA‑10F terminal block?
Use flexible wire of 0.75–1.5 mm² or solid wire of 1.0–1.5 mm².
