Start here

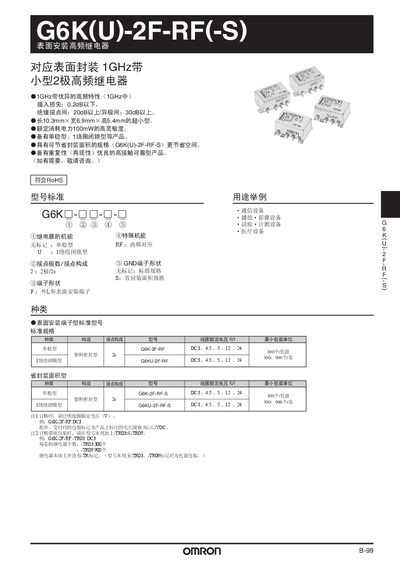

Omron G6K(U)-2F-RF(-S) Surface Mount High-Frequency Relay User Manual
This manual describes the G6K(U)-2F-RF(-S) surface‑mount high‑frequency relay, including its electrical characteristics such as insertion loss (≤0.2 dB), isolation (≥20 dB same‑pole, ≥30 dB cross‑pole), and power consumption (≈100 mW). It also lists the available variants (single‑stable, one‑coil latching) and their rated coil voltages (3 V, 4.5 V, 5 V, 12 V, 24 V).
Mechanical data, packaging options, and recommended soldering procedures are provided. The relay measures 10.3 mm × 6.9 mm × 5.4 mm, and the document details tape‑and‑reel (‑TR03, ‑TR09) and tray packaging, as well as recommended solder‑paste thickness and temperature profiles for both leaded and lead‑free processes. This manual is written in Chinese.
Omron G6KU-2F-RF-S specifications
| Insertion loss | < 0.2 dB |
|---|---|
| Isolation (same‑pole contacts) | > 20 dB |
| Isolation (different‑pole contacts) | > 30 dB |
| Contact resistance | > 1 000 MΩ |
| Maximum contact voltage | AC125 V / DC60 V |
| Maximum contact current | 1 A |
| Power consumption (rated) | 100 mW |
| Dimensions (L×W×H) | 10.3 mm × 6.9 mm × 5.4 mm |
| Weight | ≈ 0.95 g |
| Operating temperature range | -40 °C to +70 °C |
| Relative humidity range | 5 % to 85 % RH |
All Omron G6KU-2F-RF-S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the insertion loss of the G6KU-2F-RF-S relay?
The insertion loss is below 0.2 dB.
What packaging options are available for this relay?
Packaging can be ordered with a -TR03 suffix (300 units per roll), -TR09 suffix (900 units per roll), or as standard tray packaging when no -TR suffix is present.
What is the insertion loss of the G6K(U)-2F-RF(-S) relay?
The insertion loss is 0.2 dB or less.
From: Omron G6K(U)-2F-RF(-S) Surface Mount High-Frequency Relay User Manual
How many relays are supplied per roll for the -TR03 tape packaging?
Each -TR03 roll contains 300 relays.
From: Omron G6K(U)-2F-RF(-S) Surface Mount High-Frequency Relay User Manual
