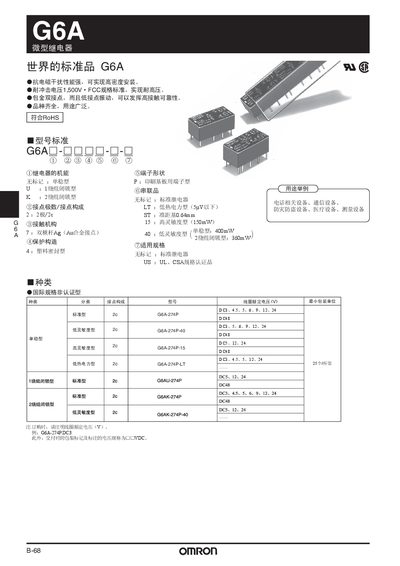

The G6A series is a family of micro relays with strong EMI resistance and high‑density mounting options. Various versions are offered, including standard, single‑stable, dual‑coil lock, low‑sensitivity, high‑sensitivity, and UL/CSA certified types.
The document lists coil voltage options, contact ratings, mechanical and electrical life, environmental limits, and dimensional data. It also includes test results for contact resistance, insulation resistance, and performance under temperature and humidity variations, along with usage guidelines and safety notes. This manual is written in Chinese.
| Maximum contact voltage | AC 250 V, DC 220 V |
|---|---|
| Contact resistance (max) | ≤ 50 mΩ |
| Insulation resistance (min) | ≥ 10⁹ Ω |
| Mechanical life | ≥ 1 × 10⁸ cycles |
| Electrical life | ≥ 5 × 10⁵ cycles |
| Operating temperature range | -40 °C to +70 °C |
| Weight | ≈ 3.5 g |
Certain G6A models are certified to UL and CSA standards.
The relay is specified for use from –40 °C to +70 °C.
