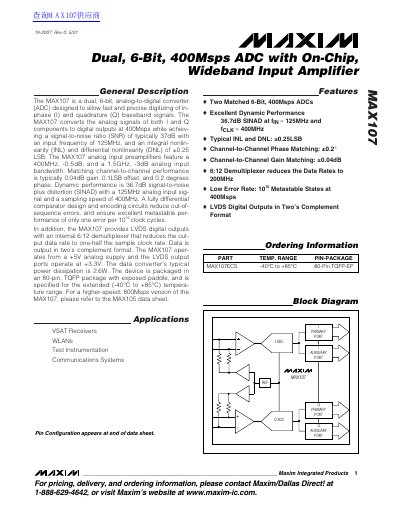

MAXIM MAX107 Dual 6-Bit 400Msps ADC Datasheet
The MAX107 is a dual, 6-bit analog-to-digital converter (ADC) designed for fast and precise digitizing of in-phase (I) and quadrature (Q) baseband signals. It converts analog signals to digital outputs at 400Msps with a typical signal-to-noise ratio of 37dB and an input frequency of 125MHz. The device includes an internal 6:12 demultiplexer that reduces the output data rate to one-half the sample clock rate.
Read onlineMaxim MAX107 specifications
| Resolution | 6 Bits |
|---|---|
| Sampling Rate | 400Msps |
| Signal-to-Noise Ratio | 37dB |
| Input Frequency | 125MHz |
| Analog Input Bandwidth | 400MHz, -0.5dB |
| Operating Temperature Range | -40°C to +85°C |
| Package | 80-pin TQFP |
| Analog Supply Voltage | +5V |
| Digital Supply Voltage | +3.3V |
All Maxim MAX107 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical power dissipation of the MAX107?
The typical power dissipation is 2.6W.
Does the MAX107 include a demultiplexer?
Yes, it provides an internal 6:12 demultiplexer.
What is the maximum sample rate of the MAX107?
The MAX107 can sample at up to 400 Msps.
From: Maxim MAX107 Dual 6‑Bit 400 Msps ADC with On‑Chip Wideband Input Amplifier Datasheet
What supply voltages does the MAX107 require?
It uses a +5 V analog supply and a +3.3 V digital supply for the LVDS outputs.
From: Maxim MAX107 Dual 6‑Bit 400 Msps ADC with On‑Chip Wideband Input Amplifier Datasheet
