Start here

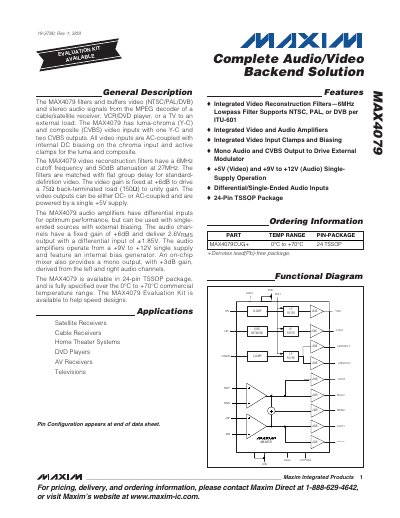

Maxim MAX4079 Complete Audio/Video Backend Solution Datasheet
The MAX4079 provides integrated video reconstruction filters (6 MHz cutoff, +6 dB gain) and stereo audio amplifiers (+6 dB gain) in a single 24‑pin TSSOP package. It operates from a single +5 V video supply and a +9 V to +12 V audio supply, delivering 2.6 V RMS audio output and driving 75 Ω video loads.
The datasheet includes absolute maximum ratings, detailed electrical characteristics, pin descriptions, layout recommendations, and package information, along with typical operating curves and performance graphs for both video and audio sections.
Maxim MAX407 specifications
| Video Supply Voltage Range (VVID) | 4.75 V – 5.25 V |
|---|---|
| Audio Supply Voltage Range (AUDV) | 8.5 V – 12.6 V |
| Video Output Load | 150 Ω to GVID |
| Audio Output RMS Level | 2.6 V RMS into 10 kΩ load |
| Operating Temperature Range | 0 °C – +70 °C |
| Package | 24‑pin TSSOP |
Source: Maxim MAX4079 Complete Audio/Video Backend Solution Datasheet
All Maxim MAX407 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
In which package is the MAX4079 offered?
The device is offered in a 24‑pin TSSOP package.
From: Maxim MAX4079 Complete Audio/Video Backend Solution Datasheet
What is the typical audio output level of the MAX4079?
It delivers a typical audio output of 2.6 V RMS into a 10 kΩ load.
From: Maxim MAX4079 Complete Audio/Video Backend Solution Datasheet
What is the maximum quiescent current of the MAX406 series?
The MAX406 series has a maximum quiescent current of 1.2 µA.
From: Maxim MAX406/MAX407/MAX409/MAX417/MAX418/MAX419 Operational Amplifier Datasheet
Where can I find the latest package outline information for these op‑amps?
Package outlines and land patterns are available on Maxim’s website at www.maxim-ic.com/packages.
From: Maxim MAX406/MAX407/MAX409/MAX417/MAX418/MAX419 Operational Amplifier Datasheet
