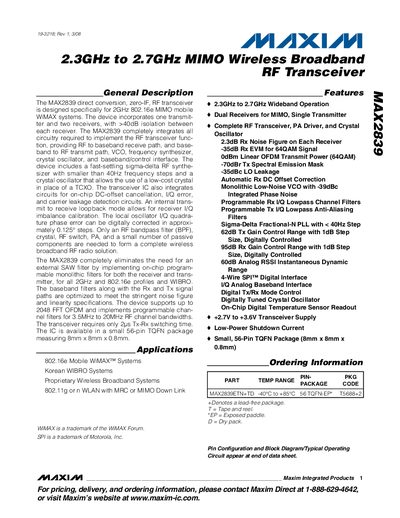

Maxim MAX2839 RF Transceiver Datasheet
The MAX2839 is a direct‑conversion, zero‑IF RF transceiver designed for 2 GHz 802.16e MIMO mobile WiMAX systems. It integrates a transmitter, two receivers, a VCO, sigma‑delta fractional‑N PLL, crystal oscillator and baseband/control interfaces, requiring only a few external components for a complete broadband solution.
Key features include >40 dB isolation between receivers, programmable on‑chip filters, fast 2 µs Tx‑Rx switching, low‑noise VCO, and a 56‑pin TQFN package (8 mm × 8 mm × 0.8 mm). The device supports up to 2048‑FFT OFDM, programmable channel filters (3.5 MHz‑20 MHz) and provides extensive digital control via a 4‑wire SPI interface.
Maxim MAX2839 specifications
| Operating Frequency Range | 2.3 GHz – 2.7 GHz |
|---|---|
| Package | 56‑pin TQFN (8 mm × 8 mm × 0.8 mm) |
| Supply Voltage | 2.7 V – 3.6 V |
| Tx‑Rx Switching Time | 2 µs |
| Rx Noise Figure | 2.3 dB per receiver |
| Tx Gain Control Range | 62 dB (1 dB steps) |
All Maxim MAX2839 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating frequency range of the MAX2839?
The MAX2839 operates from 2.3 GHz to 2.7 GHz.
What package does the MAX2839 use?
It is supplied in a 56‑pin TQFN package measuring 8 mm × 8 mm × 0.8 mm.
What supply voltage does the MAX2839AS require?
The device operates from a supply voltage (VCC) of 2.7 V to 3.6 V.
From: Maxim MAX2839AS 2.3‑2.7 GHz MIMO Wireless Broadband RF Transceiver Datasheet
How fast can the transceiver switch between transmit and receive modes?
The transceiver can switch from Tx to Rx (or Rx to Tx) in 2 µs.
From: Maxim MAX2839AS 2.3‑2.7 GHz MIMO Wireless Broadband RF Transceiver Datasheet
