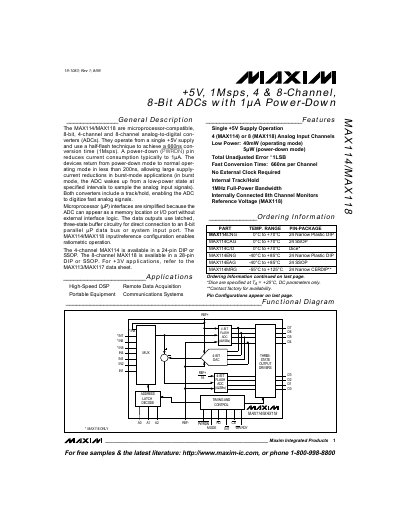

Maxim MAX114/MAX118 8‑Bit ADC Datasheet
The MAX114 and MAX118 are microprocessor‑compatible 8‑bit analog‑to‑digital converters that operate from a single +5 V supply. They feature a half‑flash conversion technique achieving a 660 ns conversion time (1 Msps) and include an internal track/hold circuit for fast signal digitization.
Both devices offer low‑power operation with a typical power‑down current of 1 µA and provide 4 (MAX114) or 8 (MAX118) analog input channels in 24‑pin DIP/SSOP or 28‑pin DIP/SSOP packages. Detailed electrical, timing, and pin specifications are provided for system integration.
Maxim MAX118 specifications
| Supply Voltage | +5 V (single supply) |
|---|---|
| Conversion Time | 660 ns (1 Msps) |
| Power‑Down Current | Typical 1 µA |
| Typical Power Consumption (operating mode) | 40 mW |
| Typical Power Consumption (power‑down mode) | 5 µW |
| Total Unadjusted Error | ≤ 1 LSB |
All Maxim MAX118 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Maxim MAX114/MAX118 8‑Bit ADC Datasheet 12 p
- Maxim MAX1180 Dual 10‑Bit 105Msps 3.3V Low‑Power ADC Data Sheet 21 p
- Maxim MAX1182 Dual 10‑Bit 65Msps 3V Low‑Power ADC with Internal Reference and Parallel Outputs Datasheet 21 p
- Maxim MAX1184 Dual 10‑Bit 20Msps 3V Low‑Power ADC Datasheet 21 p
- Maxim MAX1185 Dual 10‑Bit 20 Msps 3 V Low‑Power ADC with Internal Reference Multiplexed Parallel Outputs Datasheet 21 p
- MAXIM MAX1183 Dual 10-Bit 40Msps 3V Low-Power ADC with Internal Reference Parallel Outputs handbook 18 p
- Maxim MAX1181 Analog-to-Digital Converter Datasheet 20 p
- Maxim MAX1186 Dual 10‑Bit ADC Data Sheet 21 p
- Maxim MAX11835 Haptic Actuator Controller Datasheet 1 p
- Maxim MAX11811 Touch‑Screen Controller Datasheet 1 p
- Maxim MAX11800–MAX11803 Touch‑Screen Controller Datasheet 59 p
