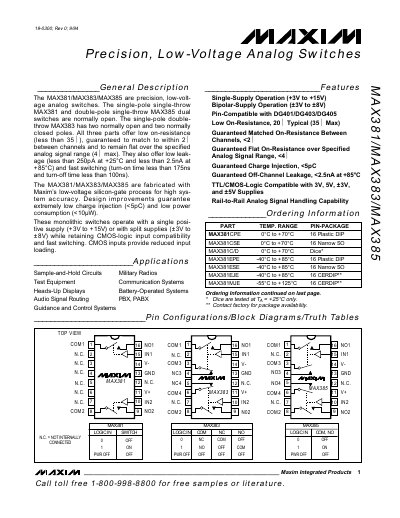

Maxim MAX381/MAX383/MAX385 Precision Low-Voltage Analog Switches Datasheet
The MAX381, MAX383, and MAX385 are precision low‑voltage analog switches offered by Maxim. They are single‑pole single‑throw (MAX381), double‑pole single‑throw (MAX385), and single‑pole double‑throw (MAX383) devices with low on‑resistance and low leakage.
These switches support single‑supply operation from +3 V to +15 V or bipolar supplies from ±3 V to ±8 V, provide fast switching (<175 ns turn‑on, <100 ns turn‑off), and consume less than 10 µW, making them suitable for sample‑and‑hold circuits, military radios, test equipment, and other applications.
Maxim MAX381 specifications
| On‑Resistance (typical) | 20 Ω |
|---|---|
| On‑Resistance (maximum) | <35 Ω |
| Off‑Leakage Current (max at +25 °C) | <250 pA |
| Turn‑On Time | <175 ns |
| Turn‑Off Time | <100 ns |
| Supply Voltage (single) | +3 V to +15 V |
| Power Consumption | <10 µW |
Source: Maxim MAX381/MAX383/MAX385 Precision Low-Voltage Analog Switches Datasheet
All Maxim MAX381 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Maxim MAX381/MAX383/MAX385 Precision Low-Voltage Analog Switches Datasheet 12 p
- MAXIM MAX3814 DVI/HDMI TMDS FR-4 Cable Equalizer/Driver handbook 14 p
- Maxim MAX3816A I2C 2‑Wire Extender Datasheet 18 p
- Maxim Integrated MAX3815ATMDS Digital Video Equalizer Datasheet 11 p
- Maxim MAX3815 TMDS Digital Video Equalizer for DVI/HDMI Cables Datasheet 11 p
Questions answered in these manuals
What is the typical on‑resistance of the MAX381/383/385?
The typical on‑resistance is 20 Ω (with a maximum of 35 Ω).
From: Maxim MAX381/MAX383/MAX385 Precision Low-Voltage Analog Switches Datasheet
What is the maximum off‑leakage current at +25 °C?
The off‑leakage current is less than 250 pA at +25 °C.
From: Maxim MAX381/MAX383/MAX385 Precision Low-Voltage Analog Switches Datasheet
What is the supply voltage range for the MAX3814?
The device operates from 3.0 V to 3.6 V supply voltage.
From: MAXIM MAX3814 DVI/HDMI TMDS FR-4 Cable Equalizer/Driver handbook
How can the output current level be selected?
The LEVEL pin selects the output current: low sets 10 mA, high sets 15 mA.
From: MAXIM MAX3814 DVI/HDMI TMDS FR-4 Cable Equalizer/Driver handbook
What is the maximum cable length the MAX3816A can support?
It can extend DDC/I²C signals over up to 60 meters of DVI, HDMI, or VGA cable.
How much power does the MAX3816A consume at 100 kbps?
It consumes 25 mW, not counting the pull‑up resistors.
