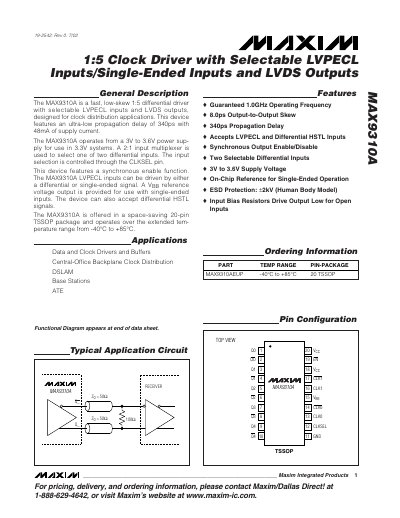

Maxim Integrated MAX9310A 1:5 Clock Driver Datasheet
The MAX9310A is a high‑speed, low‑skew 1:5 differential clock driver designed for clock distribution applications. It offers selectable LVPECL inputs, LVDS outputs, an ultra‑low propagation delay of 340 ps, and synchronous enable control.
The device operates from a 3 V to 3.6 V supply, is packaged in a 20‑pin TSSOP, and functions over an extended temperature range of –40 °C to +85 °C. Detailed electrical characteristics, pin descriptions, and application guidelines are provided in the datasheet.
Maxim MAX9310 specifications
| Propagation delay | 340 ps |
|---|---|
| Output‑to‑Output Skew | 8 ps |
| Operating frequency | 1.0 GHz |
| Supply voltage range | 3 V to 3.6 V |
| Package | 20‑pin TSSOP |
| Operating temperature range | -40 °C to +85 °C |
Source: Maxim Integrated MAX9310A 1:5 Clock Driver Datasheet
All Maxim MAX9310 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the propagation delay of the MAX9310A?
The MAX9310A has an ultra‑low propagation delay of 340 ps.
What supply voltage range does the MAX9310A operate from?
It operates from a 3 V to 3.6 V power supply.
What supply voltage range does the MAX9310 require?
The device operates from a 2.375 V to 2.625 V supply.
What is the propagation delay of the MAX9310?
The propagation delay is 345 ps.
