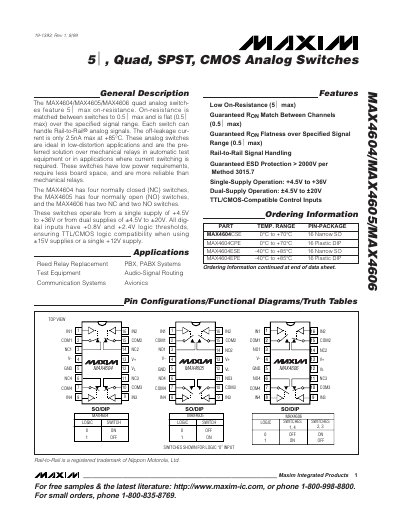

Maxim MAX4604/MAX4605/MAX4606 Quad Analog Switch Datasheet
The MAX4604, MAX4605 and MAX4606 are quad analog switches featuring a maximum on‑resistance of 5 Ω and matched channel resistance within 0.5 Ω. Each switch handles rail‑to‑rail analog signals and offers off‑leakage currents as low as 2.5 nA at +85 °C, making them suitable for low‑distortion applications and as replacements for mechanical relays.
These devices operate from a single supply of +4.5 V to +36 V or from dual supplies of ±4.5 V to ±20 V, with TTL/CMOS‑compatible control inputs (logic low 0.8 V, logic high 2.4 V). The data sheet includes absolute maximum ratings, electrical characteristics, dynamic switching parameters, and application notes such as over‑voltage protection and layout considerations.
Maxim MAX4606 specifications
| Maximum On‑Resistance | 5 Ω |
|---|---|
| On‑Resistance Match Between Channels | 0.5 Ω max |
| Off‑Leakage Current (max at +85 °C) | 2.5 nA |
| Supply Voltage Range (single supply) | +4.5 V to +36 V |
| Supply Voltage Range (dual supply) | ±4.5 V to ±20 V |
Source: Maxim MAX4604/MAX4605/MAX4606 Quad Analog Switch Datasheet
All Maxim MAX4606 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on‑resistance of the MAX4604/5/6 switches?
The maximum on‑resistance is 5 Ω.
From: Maxim MAX4604/MAX4605/MAX4606 Quad Analog Switch Datasheet
What supply voltage ranges are supported?
They operate from +4.5 V to +36 V with a single supply, or from ±4.5 V to ±20 V with dual supplies.
From: Maxim MAX4604/MAX4605/MAX4606 Quad Analog Switch Datasheet
How much quiescent current is drawn in shutdown mode?
The shutdown input reduces quiescent current to less than 2 µA (max).
What is the maximum on‑resistance of the switches?
The maximum on‑resistance is 7 Ω.
What supply voltage range do the MAX4906 series devices support?
They operate from a single +3.0 V to +3.6 V power‑supply voltage.
What is the typical on‑resistance of the MAX4906/4907 devices?
Typical on‑resistance is about 0.4 Ω, with a maximum of 0.7 Ω.
