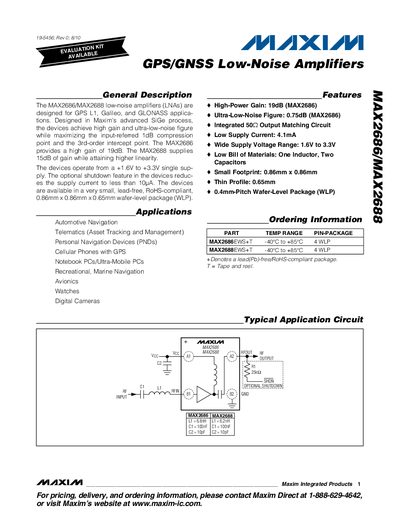

Maxim MAX2686/MAX2688 GPS/GNSS Low-Noise Amplifier Datasheet
The MAX2686 and MAX2688 are low‑noise amplifiers (LNAs) designed for GPS L1, Galileo, and GLONASS applications. They operate from a single‑supply voltage of 1.6 V to 3.3 V and are available in a tiny 0.86 mm × 0.86 mm × 0.65 mm wafer‑level package (WLP). Typical applications include automotive navigation, telematics, personal navigation devices, cellular phones with GPS, and notebook PCs.
Key features include a high gain of 19 dB (MAX2686) or 15 dB (MAX2688), ultra‑low noise figures of 0.75 dB (MAX2686) and 0.8 dB (MAX2688), an optional shutdown mode that reduces supply current to less than 10 µA, and a low bill‑of‑materials design requiring only one inductor and two capacitors. The devices provide integrated 50 Ω output matching and are RoHS‑compliant.
Maxim MAX2686 specifications
| Gain (MAX2686) | 19 dB |
|---|---|
| Gain (MAX2688) | 15 dB |
| Noise Figure (MAX2686) | 0.75 dB |
| Noise Figure (MAX2688) | 0.8 dB |
| Supply Voltage Range | 1.6 V to 3.3 V |
| Typical Supply Current | 4.1 mA |
| Package Dimensions | 0.86 mm × 0.86 mm × 0.65 mm (WLP) |
Source: Maxim MAX2686/MAX2688 GPS/GNSS Low-Noise Amplifier Datasheet
All Maxim MAX2686 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do the MAX2686 and MAX2688 support?
Both devices operate from a single supply of 1.6 V to 3.3 V.
From: Maxim MAX2686/MAX2688 GPS/GNSS Low-Noise Amplifier Datasheet
What is the typical gain of the MAX2686?
The MAX2686 provides a high gain of 19 dB.
From: Maxim MAX2686/MAX2688 GPS/GNSS Low-Noise Amplifier Datasheet
