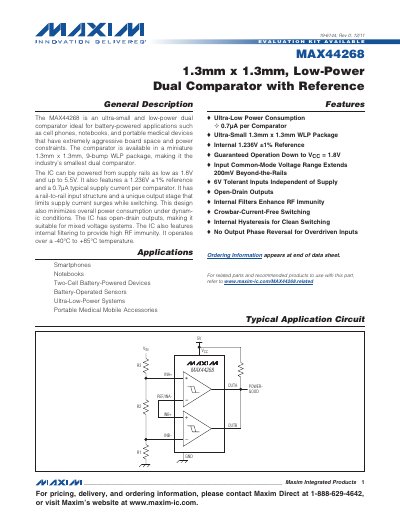

Maxim Integrated MAX44268 Low-Power Dual Comparator Datasheet
The MAX44268 is a general‑purpose dual comparator designed for battery‑powered devices where board space and power consumption are critical. It operates from 1.8 V to 5.5 V supply rails, draws only 0.7 µA per comparator, and includes an internal 1.236 V ±1 % reference. Its open‑drain outputs and rail‑to‑rail input structure make it suitable for smartphones, notebooks, portable medical equipment, and other ultra‑low‑power applications.
The datasheet provides detailed electrical characteristics such as a typical input offset voltage of 5 mV, input bias current of 0.15 nA, and operation over a temperature range of –40 °C to +85 °C. Mechanical information lists the 1.3 mm × 1.3 mm, 9‑bump WLP package, and guidelines for board layout and bypassing. Typical application circuits illustrate window‑detector and jack‑detect implementations.
Maxim MAX4426 specifications
| Input Common‑Mode Voltage Range | Extends 200 mV beyond the rails |
|---|---|
| Output Type | Open‑Drain |
| Internal Hysteresis | 4 mV |
| Operating Temperature Range | –40 °C to +85 °C |
All Maxim MAX4426 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the internal hysteresis of the comparator?
The device includes an internal hysteresis of 4 mV.
What is the input common‑mode voltage range?
The input common‑mode range extends 200 mV beyond the supply rails.
What is the gain‑bandwidth product of the op‑amp?
The GBW product is 200 kHz.
What supply voltage range does the MAX4426 support?
The MAX4426 operates from 4.5 V up to 18 V.
From: Maxim MAX4426 Datasheet
What is the peak output current of the MAX4426?
The device can deliver a peak output current of 1.54 A.
From: Maxim MAX4426 Datasheet
