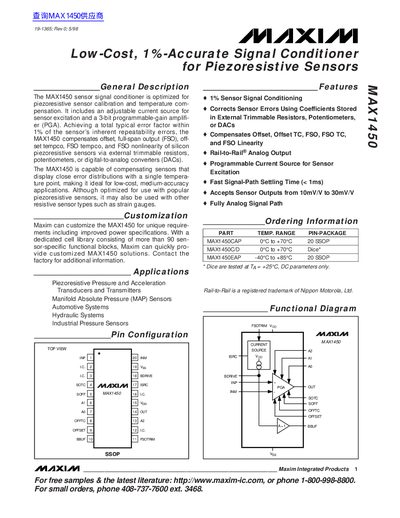

MAXIM MAX1450 Signal Conditioner Datasheet
The MAX1450 is an integrated circuit designed to optimize signal conditioning for piezoresistive sensors. It includes an adjustable current source for sensor excitation and a 3-bit programmable-gain amplifier (PGA). The device compensates for offset, fullspan output (FSO), offset temperature coefficient (TC), FSO TC, and FSO nonlinearity using external trimmable resistors or digital-to-analog converters.
The document provides detailed electrical characteristics, pin descriptions, and functional diagrams. Key features include rail-to-rail analog output, fast signal-path settling time under 1ms, and the ability to accept sensor outputs ranging from 10mV/V to 30mV/V.
Maxim MAX1450 specifications
| Total Typical Error Factor | 1% of sensor's inherent repeatability errors |
|---|---|
| Supply Current (Ipp) | 2.8 to 3.5 mA |
| PGA Input Impedance | 1.0 MΩ |
| Common-Mode Rejection Ratio (CMRR) | 90 dB |
| PGA Gain Range | 39 to 221 V/V |
| Output Voltage Swing | (Vss + 0.25V) to (VDD - 0.25V) |
| Bridge Drive Current Range | 0.4 to 2.0 mA |
