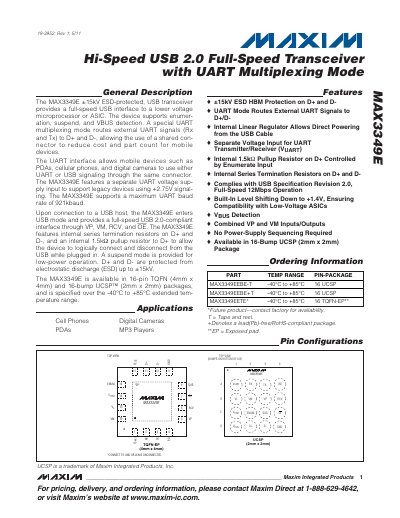

Maxim MAX3349E USB Transceiver Datasheet
The MAX3349E is a full‑speed USB 2.0 transceiver that also supports a UART multiplexing mode, allowing external UART signals to be routed to the USB D+ and D‑ lines. It provides ±15 kV ESD protection, internal series termination, a 1.5 kΩ pull‑up on D+, and a separate UART voltage supply for legacy devices.
Key specifications include operation from –40 °C to +85 °C, a maximum UART baud rate of 921 kbaud, VBUS input range of 3.0 V‑5.5 V, and availability in 16‑pin TQFN (4 mm × 4 mm) and 16‑bump UCSP (2 mm × 2 mm) packages.
Maxim MAX3349E specifications
| Operating temperature range | -40 °C to +85 °C |
|---|---|
| Maximum UART baud rate | 921 kbaud |
| Package options | 16‑pin TQFN (4 mm × 4 mm) and 16‑bump UCSP (2 mm × 2 mm) |
| VBUS input range | 3.0 V to 5.5 V |
| VUART input range | 2.7 V to 3.3 V |
| Internal pull‑up resistor on D+ | 1.5 kΩ |
All Maxim MAX3349E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum UART baud rate supported by the MAX3349E?
The MAX3349E supports a maximum UART baud rate of 921 kbaud.
What package types are available for the MAX3349E?
It is offered in a 16‑pin TQFN (4 mm × 4 mm) package and a 16‑bump UCSP (2 mm × 2 mm) package.
What is the maximum UART baud rate supported by the MAX3349EA?
The device supports a maximum UART baud rate of 921 kbaud.
From: Maxim MAX3349EA USB 2.0 Full-Speed Transceiver Datasheet
How much ESD protection does the MAX3349EA provide on its data lines?
Both D+ and D‑ are protected against electrostatic discharge up to ±15 kV.
From: Maxim MAX3349EA USB 2.0 Full-Speed Transceiver Datasheet
What is the maximum UART baud rate supported by the MAX3349EA?
The MAX3349EA supports a maximum UART baud rate of 921 kbaud.
From: Maxim MAX3349EA USB 2.0 Full-Speed Transceiver with UART Multiplexing Mode Datasheet
What level of ESD protection does the MAX3349EA provide?
It is protected against electrostatic discharge up to +15 kV.
From: Maxim MAX3349EA USB 2.0 Full-Speed Transceiver with UART Multiplexing Mode Datasheet
