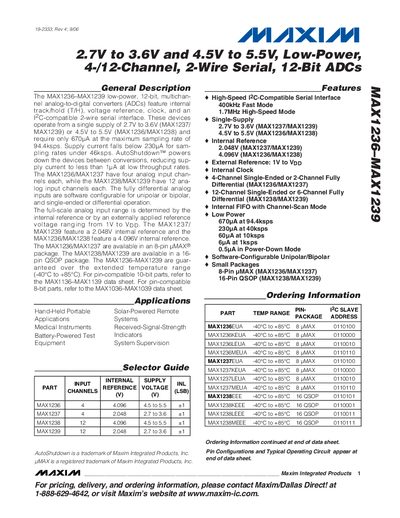

MAXIM INTEGRATED PRODUCTS MAX1236 MAX1239 2.7V to 3.6V 4.5V to 5.5V Low-Power 4-/12-Channel 2-Wire Serial 12-Bit ADCs Manual
The MAX1236‑MAX1239 family provides low‑power, 12‑bit analog‑to‑digital conversion with internal track/hold, voltage reference, clock and a 2‑wire I²C‑compatible serial interface. Devices operate from a single supply of 2.7 V‑3.6 V (MAX1237/1239) or 4.5 V‑5.5 V (MAX1236/1238) and feature AutoShutdown to reduce supply current to sub‑picoamp levels at low throughput.
Key features include selectable 4‑channel (MAX1236/1237) or 12‑channel (MAX1238/1239) inputs, internal references of 2.048 V or 4.096 V, up to 94.4 ksps sampling rate, and small 8‑pin UMAX or 16‑pin QSOP packages. Detailed electrical characteristics, timing diagrams, pin descriptions and package dimensions are provided.
Maxim MAX1236-MAX1239 specifications
| Supply Voltage Range | 2.7 V‑3.6 V (MAX1237/1239) or 4.5 V‑5.5 V (MAX1236/1238) |
|---|---|
| Internal Reference Voltage | 2.048 V (MAX1237/1239) or 4.096 V (MAX1236/1238) |
| Maximum Sampling Rate | 94.4 ksps |
| Supply Current at 94.4 ksps | 670 µA |
| Power‑Down Current | < 1 pA |
All Maxim MAX1236-MAX1239 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the MAX1236‑MAX1239 ADCs?
The devices can sample up to 94.4 ksps.
What supply voltage range does the MAX1236 operate over?
MAX1236 operates from 4.5 V to 5.5 V.
