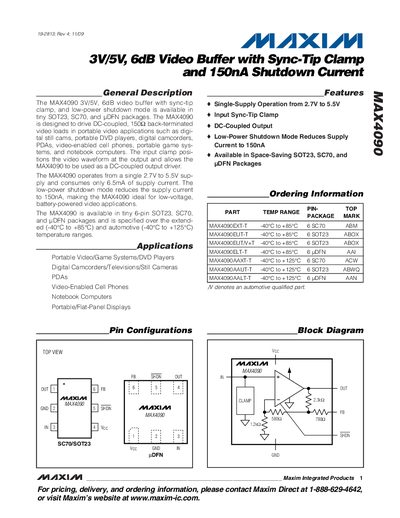

Maxim MAX4090 Video Buffer Datasheet
The MAX4090 video buffer from Maxim operates from a single 2.7 V to 5.5 V supply and consumes only 6.5 mA in normal mode. Its low‑power shutdown mode reduces the supply current to 150 nA, making it suitable for battery‑powered portable video applications such as digital cameras, DVD players, PDAs and video‑enabled cell phones.
The device provides a DC‑coupled output with a sync‑tip clamp that positions the video waveform at the output. It is available in space‑saving SOT23, SC70 and UDFN packages and is qualified for both commercial (‑40 °C to +85 °C) and automotive (‑40 °C to +125 °C) temperature ranges.
Maxim MAX409 specifications
| Quiescent Current | 1.2 µA max |
|---|---|
| Operating Temperature Range (standard) | 0 °C to +70 °C |
| Operating Temperature Range (extended) | -40 °C to +85 °C |
| Operating Temperature Range (rugged) | -55 °C to +125 °C |
Source: Maxim MAX406/MAX407/MAX409/MAX417/MAX418/MAX419 Operational Amplifier Datasheet
All Maxim MAX409 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which package types are available for the MAX4090?
The MAX4090 is offered in 6‑pin SOT23, SC70 and UDFN (uUDFN) packages.
What is the maximum quiescent current of the MAX406 series?
The MAX406 series has a maximum quiescent current of 1.2 µA.
From: Maxim MAX406/MAX407/MAX409/MAX417/MAX418/MAX419 Operational Amplifier Datasheet
Where can I find the latest package outline information for these op‑amps?
Package outlines and land patterns are available on Maxim’s website at www.maxim-ic.com/packages.
From: Maxim MAX406/MAX407/MAX409/MAX417/MAX418/MAX419 Operational Amplifier Datasheet
How much quiescent current does each op amp draw?
Each op amp draws less than 130 µA of supply current.
