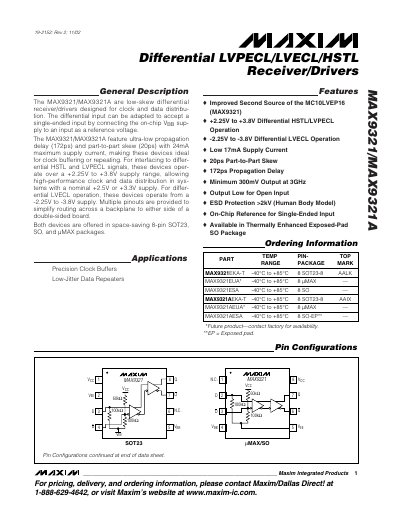

Maxim MAX9321/MAX9321A Differential Receiver/Driver Datasheet
The MAX9321 and MAX9321A are low‑skew differential receiver/drivers designed for high‑performance clock and data distribution. They support both differential HSTL/LVPECL (+2.25 V to +3.8 V) and differential LVECL (‑2.25 V to ‑3.8 V) operation and can be configured for single‑ended inputs using the on‑chip V BB reference.
Typical specifications include a 172 ps propagation delay, 20 ps part‑to‑part skew, 24 mA maximum supply current, and operation over –40 °C to +85 °C. The devices are offered in 8‑pin SOT23, SO, and µMAX packages and feature ESD protection greater than 2 kV (HBM).
Maxim MAX9321 specifications
| Propagation Delay (typical) | 172 ps |
|---|---|
| Part‑to‑Part Skew (typical) | 20 ps |
| Maximum Supply Current | 24 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Minimum Output Voltage at 3 GHz | 300 mV |
| ESD Protection (HBM) | >2 kV |
Source: Maxim MAX9321/MAX9321A Differential Receiver/Driver Datasheet
All Maxim MAX9321 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the MAX9321 support for HSTL/LVPECL operation?
It operates over a +2.25 V to +3.8 V supply range.
From: Maxim MAX9321/MAX9321A Differential Receiver/Driver Datasheet
What is the typical propagation delay of the MAX9321?
The typical propagation delay is 172 ps.
From: Maxim MAX9321/MAX9321A Differential Receiver/Driver Datasheet
How many pins does the MAX9321B package have?
The device is offered in 8‑pin SO and 8‑pin TSSOP packages.
From: Maxim Integrated MAX9321B Differential Receiver/Driver Datasheet
What termination is recommended for the differential outputs?
Terminate each output with a 50 Ω resistor to VCC‑2 V (or an equivalent Thevenin termination).
From: Maxim Integrated MAX9321B Differential Receiver/Driver Datasheet
