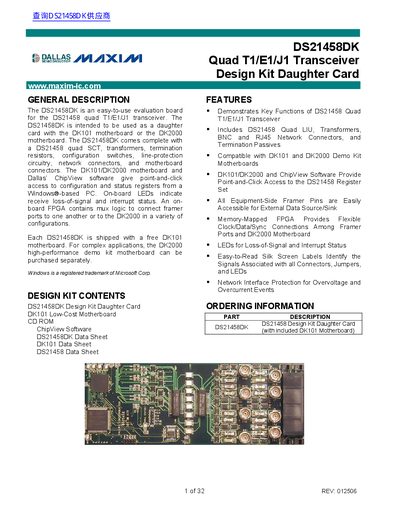

Maxim DS21458DK Quad T1/E1/J1 Transceiver Design Kit Daughter Card Handbook
The DS21458DK is an evaluation board designed for the DS21458 quad T1/E1/J1 transceiver. It functions as a daughter card compatible with the DK101 low-cost motherboard or the DK2000 high-performance demo kit motherboard. The kit includes the daughter card, transformers, termination resistors, configuration switches, and network connectors, along with the necessary software for configuration.
Read onlineMaxim DS21458 specifications
| Compatible Motherboards | DK101 and DK2000 Demo Kit Motherboards |
|---|---|
| Included Components | DS21458 Quad LIU, Transformers, BNC and RJ45 Network Connectors |
| Power Supply | 3.3V |
| FPGA Type | Xilinx Spartan |
Source: Maxim DS21458DK Quad T1/E1/J1 Transceiver Design Kit Daughter Card Handbook
All Maxim DS21458 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which motherboards is the DS21458DK compatible with?
The DS21458DK is intended to be used as a daughter card with the DK101 motherboard or the DK2000 motherboard.
From: Maxim DS21458DK Quad T1/E1/J1 Transceiver Design Kit Daughter Card Handbook
What software is included for configuration?
The kit includes ChipView software which provides point-and-click access to configuration and status registers from a Windows-based PC.
From: Maxim DS21458DK Quad T1/E1/J1 Transceiver Design Kit Daughter Card Handbook
What protocols does the DS21455/DS21458 support?
The devices can be software configured for T1, E1, or J1 operation.
From: Maxim DS21455/DS21458 Quad T1/E1/J1 Transceivers Datasheet
What is the physical size of the DS21458 package?
The DS21458 is available in a 17mm x 17mm CSBGA package.
