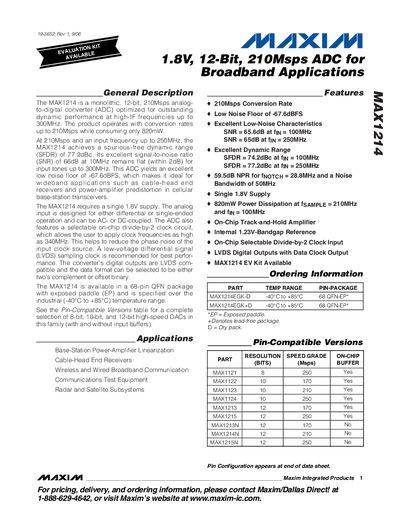

Maxim MAX1214 Datasheet
Datasheet 20 pages · 317 KB · EN
The MAX1214 is a monolithic 12‑bit analog‑to‑digital converter optimized for high‑IF frequencies up to 300 MHz. It operates from a single 1.8 V supply and offers LVDS‑compatible digital outputs with selectable data formats.
The device is offered in a 68‑pin QFN‑EP package, supports a selectable on‑chip divide‑by‑2 clock, and is rated for industrial temperature range (‑40 °C to +85 °C). Detailed electrical characteristics, pin descriptions, and package dimensions are provided.
Maxim MAX1214 specifications
| Resolution | 12 bits |
|---|---|
| Maximum Sampling Rate | 210 Msps |
| Supply Voltage | 1.8 V |
| Full‑Power Analog Bandwidth | 700 MHz |
| Spurious‑Free Dynamic Range (SFDR) | 81.3 dBc at 100 MHz |
| Package | 68‑pin QFN‑EP |
All Maxim MAX1214 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the MAX1214N?
The MAX1214N can sample at up to 210 Msps.
What supply voltage does the MAX1214N require?
It operates from a single 1.8 V supply (range 1.70‑1.90 V).
