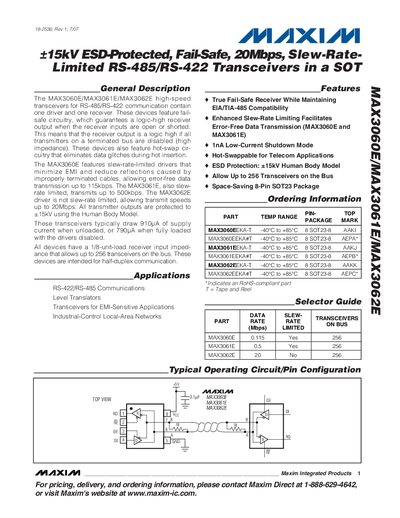

Maxim MAX3060E/MAX3061E/MAX3062E Datasheet
The MAX3060E, MAX3061E and MAX3062E are high‑speed RS‑485/RS‑422 transceivers offered in an 8‑pin SOT‑23 package. They feature fail‑safe receivers, hot‑swap circuitry, and up to +15 kV ESD protection. The MAX3060E and MAX3061E include slew‑rate limiting for EMI‑sensitive applications, while the MAX3062E provides a non‑limited driver for up to 20 Mbps data rates.
Typical applications include industrial‑control LANs, level translators, and EMI‑sensitive communications. Up to 256 transceivers can share a half‑duplex bus, and the devices draw about 910 µA no‑load and 790 µA fully loaded.
Maxim MAX306 specifications
| Maximum Data Rate (MAX3060E) | 115 kbps |
|---|---|
| Maximum Data Rate (MAX3061E) | 500 kbps |
| Maximum Data Rate (MAX3062E) | 20 Mbps |
| Supply Current (no load) | 910 µA |
| Supply Current (loaded, drivers disabled) | 790 µA |
| ESD Protection | +15 kV (Human Body Model) |
| Maximum Number of Devices on Bus | 256 |
| Package Type | 8‑pin SOT‑23 |
| Operating Temperature Range | -40 °C to +85 °C |
All Maxim MAX306 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate for the MAX3062E?
The MAX3062E supports up to 20 Mbps data transmission.
How much ESD protection do these transceivers provide?
All three devices are protected to +15 kV under the Human Body Model.
What supply voltage range can the MAX306/MAX307 operate from?
They can operate from a single supply of +5 V to +30 V or a bipolar supply of +4.5 V to +20 V.
How much leakage current does the device have at high temperature?
Leakage (INO OFF) is less than 2.5 nA at +85 °C.
