Start here

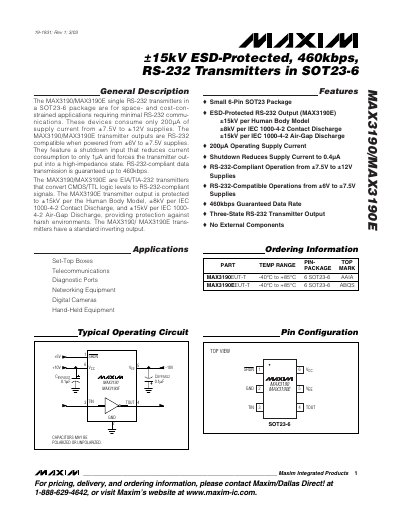

Maxim MAX3190/MAX3190E RS-232 Transmitter Datasheet
The MAX3190 and MAX3190E are single‑channel RS‑232 transmitters designed for space‑ and cost‑constrained applications. They operate from ±7.5 V to ±12 V supplies, draw only 200 µA of supply current, and provide RS‑232‑compatible outputs up to 460 kbps. The MAX3190E version adds enhanced ESD protection.
The devices feature an active‑low shutdown input that reduces supply current to 0.4 µA and places the output in a high‑impedance state, allowing other transmitters to share the line. They are supplied in a 6‑pin SOT23‑6 package and are rated for operation from –40 °C to +85 °C.
Maxim MAX319 specifications
| Supply Voltage Range | ±7.5 V to ±12 V |
|---|---|
| Operating Supply Current | 200 µA |
| Shutdown Supply Current | 0.4 µA |
| Maximum Data Rate | 460 kbps |
| ESD Protection (MAX3190E) | ±15 kV HBM, ±8 kV Contact, ±15 kV Air‑Gap |
| Operating Temperature Range | -40 °C to +85 °C |
All Maxim MAX319 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data transmission rate of the MAX3190/MAX3190E?
The devices guarantee RS‑232‑compatible data transmission up to 460 kbps.
How low can the supply current be when the shutdown input is activated?
When the SHDN pin is driven low, the supply current drops to about 0.4 µA.
What is the typical on‑resistance of the MAX317/MAX318/MAX319?
The typical on‑resistance is less than 20 Ω, with a maximum of 35 Ω.
From: Maxim MAX317/MAX318/MAX319 Precision CMOS Analog Switches Datasheet
How much leakage current do these switches have when off?
Off‑state leakage is less than 250 pA at +25 °C and less than 6 nA at +85 °C.
From: Maxim MAX317/MAX318/MAX319 Precision CMOS Analog Switches Datasheet
