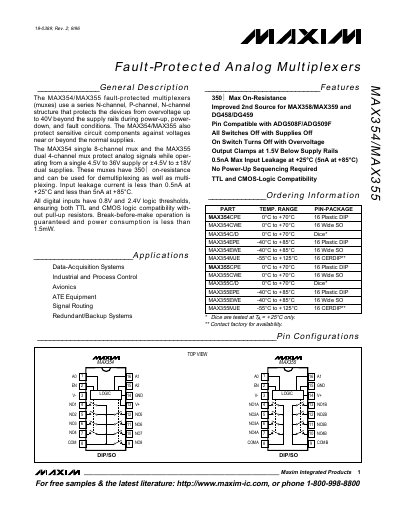

Maxim Integrated MAX354/MAX355 Fault-Protected Analog Multiplexers Datasheet
The MAX354 (single 8‑channel) and MAX355 (dual 4‑channel) are fault‑protected analog multiplexers that operate from a single 4.5 V – 36 V supply or ±4.5 V – ±18 V dual supplies. They feature a 350 Ω on‑resistance, input leakage below 0.5 nA at 25 °C, and break‑before‑make switching.
The devices protect against over‑voltage up to 40 V beyond the supply rails, clamp outputs about 1.5 V below the rails, and are compatible with both TTL and CMOS logic levels (0.8 V – 2.4 V thresholds) without external pull‑up resistors. Detailed electrical characteristics, timing diagrams and pin configurations are provided.
Maxim MAX354 specifications
| On‑Resistance (RON) | 350 Ω |
|---|---|
| Input Leakage Current (25 °C) | < 0.5 nA |
| Power Consumption | < 1.5 mW |
| Logic Input Thresholds | 0.8 V low, 2.4 V high |
| Break‑Before‑Make Operation | Guaranteed |
Source: Maxim Integrated MAX354/MAX355 Fault-Protected Analog Multiplexers Datasheet
All Maxim MAX354 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What over‑voltage level can the MAX354/MAX355 tolerate during power‑up or fault conditions?
The devices protect against over‑voltage up to 40 V beyond the supply rails.
From: Maxim Integrated MAX354/MAX355 Fault-Protected Analog Multiplexers Datasheet
How many channels does the MAX354 provide?
The MAX354 is an 8‑channel multiplexer.
From: Maxim Integrated MAX354/MAX355 Fault-Protected Analog Multiplexers Datasheet
