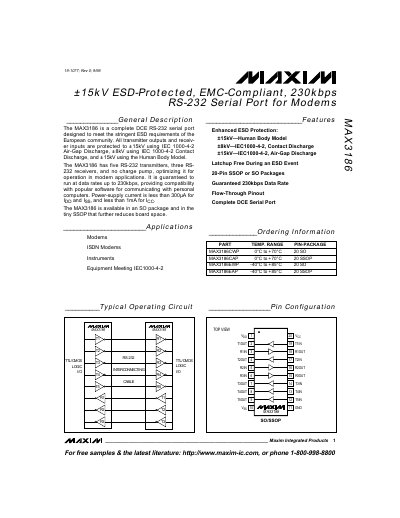

Maxim MAX3186 Datasheet
The MAX3186 provides a complete DCE RS‑232 interface designed for modem applications. It features five transmitters, three receivers, and no charge pump, delivering reliable communication up to 230 kbps while meeting stringent IEC 1000‑4‑2 ESD standards.
The device operates from dual supply rails (VCC 4.5‑5.5 V, VDD 10.8‑13.2 V, VSS –10.8 to –13.2 V) with low supply currents (<300 µA for I DD/I SS). It is offered in 20‑pin SSOP and SO packages and supports temperature ranges from –40 °C to +85 °C depending on the grade.
Maxim MAX318 specifications
| Data Rate | up to 230 kbps |
|---|---|
| ESD Protection (Human Body Model) | ±15 kV |
| ESD Protection (Contact Discharge) | ±8 kV |
| ESD Protection (Air‑Gap Discharge) | ±15 kV |
| Supply Current (IDD/I SS) | < 300 µA |
| Operating Temperature (C‑grade) | 0 °C to +70 °C |
| Package Types | 20‑pin SSOP, 20‑pin SO |
Source: Maxim MAX3186 Datasheet
All Maxim MAX318 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Maxim MAX3186 Datasheet 8 p
- Maxim MAX3185 RS-232 Serial Port Datasheet 8 p
- Maxim MAX3180E–MAX3183E Datasheet 8 p
- Maxim MAX3188/MAX3189 Datasheet 8 p
- Maxim MAX3187 Dual RS-232 Serial Port Datasheet 8 p
- Maxim MAX3188E/MAX3189E RS-232 Transceiver Datasheet 8 p
- Maxim MAX317/MAX318/MAX319 Precision CMOS Analog Switches Datasheet 12 p
- Maxim MAX31855 Thermocouple-to-Digital Converter Datasheet 13 p
- Maxim MAX31826 1-Wire Digital Temperature Sensor Datasheet 22 p
Questions answered in these manuals
What is the guaranteed data rate of the MAX3186?
The MAX3186 is guaranteed to operate at data rates up to 230 kbps.
From: Maxim MAX3186 Datasheet
What ESD protection levels does the MAX3186 provide?
It provides ±15 kV protection for the Human Body Model and Air‑Gap Discharge, and ±8 kV for Contact Discharge.
From: Maxim MAX3186 Datasheet
What is the maximum data rate supported by the MAX3185?
The MAX3185 is guaranteed to operate at data rates up to 230 kbps.
What ESD protection levels does the MAX3185 provide?
It offers ±15 kV protection under the Human Body Model, ±8 kV IEC 1000‑4‑2 Contact Discharge, and ±15 kV IEC 1000‑4‑2 Air‑Gap Discharge.
What is the supply current of the MAX3180E series?
The devices draw only 0.5 µA from a +3 V to +5.5 V supply.
What ESD protection level do these receivers provide?
The inputs are protected to ±15 kV using the Human Body Model and IEC 1000‑4‑2 standards.
