Start here

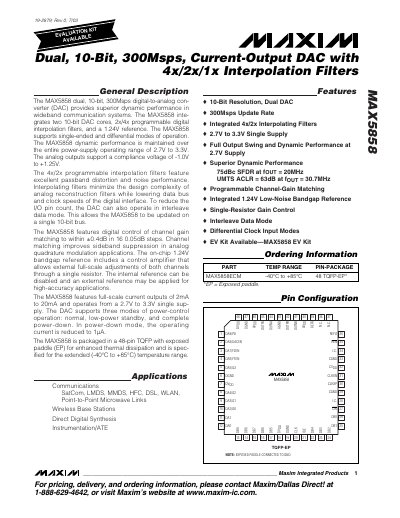

Maxim MAX5858 Dual 10‑Bit 300 Msps Current‑Output DAC Datasheet
The MAX5858 dual‑channel DAC provides high‑speed, high‑resolution conversion for wideband communication systems. It integrates two 10‑bit DAC cores, programmable digital interpolation filters, and a low‑noise 1.24 V bandgap reference, supporting both single‑ended and differential operation over a 2.7 V‑3.3 V supply.
Typical applications include satellite communications, DSL, WLAN, direct‑digital synthesis, and test equipment. The device is supplied in a 48‑pin TQFP‑EP package rated for –40 °C to +85 °C operation and offers power‑down current as low as 1 µA.
Maxim MAX5858 specifications
| Resolution | 10 Bits |
|---|---|
| Output Voltage Compliance | -1.0 V to +1.25 V |
| Interpolation Filters | 2× and 4× programmable |
| Spurious‑Free Dynamic Range (SFDR) | 75 dBc at 20 MHz |
| Package | 48‑pin TQFP‑EP |
Source: Maxim MAX5858 Dual 10‑Bit 300 Msps Current‑Output DAC Datasheet
All Maxim MAX5858 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum DAC update rate?
The MAX5858 can update at up to 300 Msps.
From: Maxim MAX5858 Dual 10‑Bit 300 Msps Current‑Output DAC Datasheet
How many channels does the MAX5858 have?
It is a dual‑channel device.
From: Maxim MAX5858 Dual 10‑Bit 300 Msps Current‑Output DAC Datasheet
What is the maximum DAC update rate of the MAX5858A?
The MAX5858A can update at up to 300 Msps with 4×, 2× or 1× interpolation.
From: Maxim Integrated MAX5858A Dual 10‑Bit 300 Msps DAC Datasheet
What supply voltage range does the MAX5858A support?
It operates from a single supply of 2.7 V to 3.3 V.
From: Maxim Integrated MAX5858A Dual 10‑Bit 300 Msps DAC Datasheet
