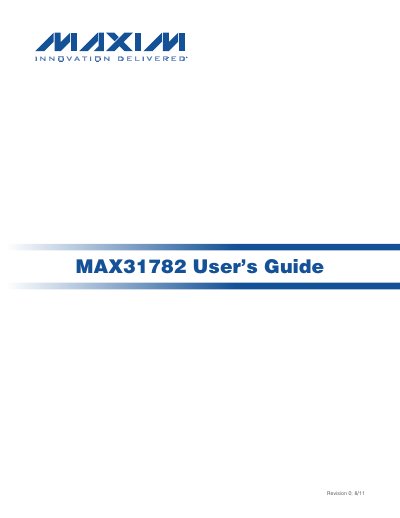

Maxim MAX31782 User Manual
The MAX31782 User Manual from Maxim describes the system‑management microcontroller designed for monitoring and controlling complex system health characteristics.
It covers the device architecture, register map, memory organization, peripheral modules such as ADC, PWM, I²C, fan tachometer and GPIO, as well as programming, debugging and in‑system programming features.
Maxim MAX317 specifications
| Supply Voltage | +3.3 V single supply |
|---|---|
| No‑cable mode current | 1 mA |
| Supported Protocols | V.28, V.11, V.35 |
| Operating Temperature Range | 0 °C to +70 °C |
| Maximum V+ / V‑ difference | 7 V each, 13 V difference |
| Data Rate (V.11/V.35) | 10 Mbps |
| Data Rate (V.28) | 240 kbps |
| Package | 28‑Pin SSOP, 5.3 mm × 6.5 mm |
| Input High Voltage (Vin) | 2.0 V |
| Input Low Voltage (VIL) | 0.8 V |
All Maxim MAX317 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Maxim MAX3170 Multiprotocol Transceiver Datasheet 16 p
- Maxim Integrated MAX3171/MAX3173 Multiprotocol Transceiver Datasheet 15 p
- Maxim MAX3172/MAX3174 Multiprotocol Cable Terminator and Transceiver Datasheet 19 p
- Maxim MXL1544/MAX3175 Multiprotocol Transceiver Datasheet 20 p
- Maxim MAX317/MAX318/MAX319 Precision CMOS Analog Switches Datasheet 12 p
- Maxim MAX3171/MAX3173 Datasheet 15 p
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What supply voltage does the MAX3170 require?
It operates from a +3.3 V single supply.
Which communication protocols are supported by the MAX3170?
The device supports V.28 (RS‑232), V.11 (RS‑449/V.36/EIA530/EIA530‑A/X.21) and V.35.
What current does the device draw in no‑cable mode?
In no‑cable mode the supply current is less than 8 mA.
From: Maxim Integrated MAX3171/MAX3173 Multiprotocol Transceiver Datasheet
How are the communication protocols selected?
The state of mode select pins M0, M1, M2 and the DCE/DTE pin determines which serial interface protocol is selected.
From: Maxim Integrated MAX3171/MAX3173 Multiprotocol Transceiver Datasheet
What is the difference between the MXL1544 and the MAX3175?
The MAX3175 is identical to the MXL1544 except it adds a 10 µs glitch‑rejection circuit at the receiver inputs.
From: Maxim MXL1544/MAX3175 Multiprotocol Transceiver Datasheet
What supply voltage does the transceiver require?
It operates from a single +5 V supply, with VCC ranging from –0.3 V to +6 V, VDD from –0.3 V to +7.2 V, and VEE from +0.3 V to –7 V.
From: Maxim MXL1544/MAX3175 Multiprotocol Transceiver Datasheet
