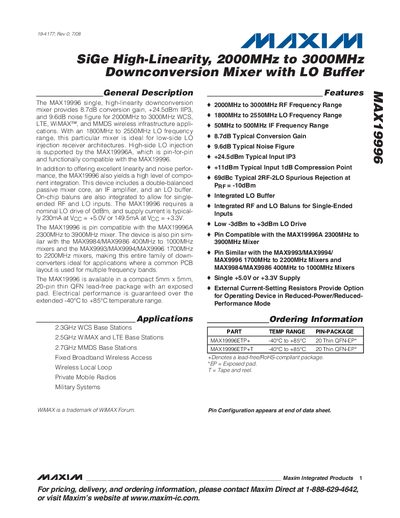

Maxim MAX19996 SiGe High-Linearity 2000MHz‑3000MHz Downconversion Mixer with LO Buffer Datasheet
The MAX19996 SiGe high‑linearity downconversion mixer provides 8.7 dB typical conversion gain, +24.5 dBm IIP3 and a 9.6 dB typical noise figure across a 2000 MHz to 3000 MHz RF range. It includes an integrated LO buffer, RF and LO baluns, and a double‑balanced passive mixer core in a compact 5 mm × 5 mm 20‑pin thin QFN‑EP package.
The device operates from a single supply of either +5.0 V (typical 230 mA) or +3.3 V (typical 149.5 mA) and supports LO frequencies from 1800 MHz to 2550 MHz. It is pin‑compatible with the MAX19996A and pin‑similar to other Maxim mixers, enabling reuse of PCB layouts across multiple frequency bands.
Maxim MAX19996 specifications
| RF Frequency Range | 2000 MHz – 3000 MHz |
|---|---|
| LO Frequency Range | 1800 MHz – 2550 MHz |
| IF Frequency Range | 50 MHz – 500 MHz |
| Typical Conversion Gain | 8.7 dB |
| Typical Noise Figure | 9.6 dB |
| Typical Input IP3 | +24.5 dBm |
| Typical Input 1 dB Compression Point | +11 dBm |
| Supply Current @ 5 V | 230 mA |
| Supply Current @ 3.3 V | 149.5 mA |
| Package | 20‑pin thin QFN‑EP, 5 mm × 5 mm |
Source: Maxim MAX19996 SiGe High-Linearity 2000MHz‑3000MHz Downconversion Mixer with LO Buffer Datasheet
All Maxim MAX19996 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What RF frequency range does the MAX19996 cover?
The MAX19996 operates from 2000 MHz to 3000 MHz RF.
From: Maxim MAX19996 SiGe High-Linearity 2000MHz‑3000MHz Downconversion Mixer with LO Buffer Datasheet
What is the typical conversion gain of the MAX19996?
Typical conversion gain is 8.7 dB.
From: Maxim MAX19996 SiGe High-Linearity 2000MHz‑3000MHz Downconversion Mixer with LO Buffer Datasheet
What is the required LO drive level for the MAX19996A?
The device requires a nominal LO drive of 0 dBm.
What is the supply current when the mixer is powered at 5 V?
Typical supply current is 230 mA at a 5 V supply.
