max107 is a 6-bit dual-channel analog-to-digital converter (adc) with differential outputs. it converts analog signals to digital outputs at 400msps.

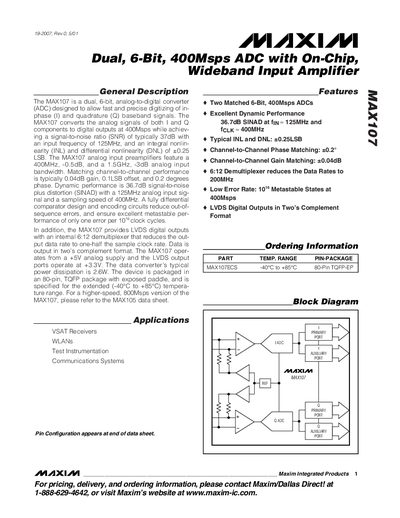

The MAX107 is a dual, 6‑bit analog‑to‑digital converter designed for fast, precise digitizing of I and Q baseband signals. It operates at a maximum sample rate of 400 Msps, provides LVDS digital outputs, and is supplied from a +5 V analog and +3.3 V digital supply.
Typical specifications include a signal‑to‑noise ratio of about 37 dB, INL/DNL of +0.25 LSB, power dissipation of 2.6 W, and an 80‑pin TQFP package with an extended temperature range of –40 °C to +85 °C. Applications cover VSAT receivers, WLANs, test instrumentation, and communications systems.
| Maximum Sample Rate | 400 Msps |
|---|---|
| Resolution | 6 bits |
| Signal‑to‑Noise Ratio (typical) | 37 dB |
| Integral Nonlinearity (INL) | +0.25 LSB |
| Differential Nonlinearity (DNL) | +0.25 LSB |
| Power Dissipation | 2.6 W |
| Analog Supply Voltage | +5 V |
| Digital Supply Voltage (LVDS) | +3.3 V |
| Package | 80‑pin TQFP with exposed paddle |
| Operating Temperature Range | –40 °C to +85 °C |
The MAX107 can sample at up to 400 Msps.
It uses a +5 V analog supply and a +3.3 V digital supply for the LVDS outputs.
Typical SNR is about 37 dB with a 125 MHz input frequency.
The device is supplied in an 80‑pin TQFP package with an exposed paddle.
