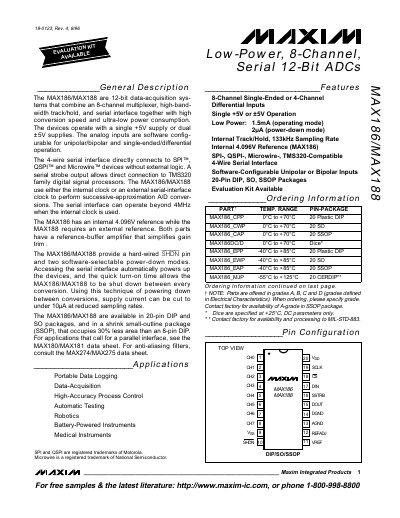

Maxim MAX186/MAX188 Low-Power 8-Channel Serial 12-Bit ADC Datasheet
The MAX186 and MAX188 are 12‑bit, low‑power data‑acquisition ADCs that combine an 8‑channel multiplexer, high‑bandwidth track‑and‑hold, and a 4‑wire serial interface. They operate from a single +5 V supply or dual ±5 V supplies, and support both internal (4.096 V) and external reference configurations.
These devices are suited for portable data logging, high‑accuracy process control, automatic testing, robotics, battery‑powered instruments, and medical equipment. Features include 133 kHz sampling, power‑down current under 10 µA, and compatibility with SPI, QSPI, Microwire, and TMS320‑family processors.
Maxim MAX186 specifications
| Resolution | 12 bits |
|---|---|
| Number of Channels | 8 |
| Supply Voltage | Single +5 V or ±5 V |
| Operating Current | 1.5 mA |
| Power‑Down Current | 2 µA (typical) / <10 µA at reduced rate |
| Internal Reference (MAX186) | 4.096 V |
| External Reference (MAX188) | 4.096 V |
| Sampling Rate | 133 kHz |
| Serial Interface Speed | >4 MHz |
| Package Types | 20‑Pin DIP, SO, SSOP |
Source: Maxim MAX186/MAX188 Low-Power 8-Channel Serial 12-Bit ADC Datasheet
All Maxim MAX186 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltages does the MAX186/MAX188 support?
They operate from a single +5 V supply or dual ±5 V supplies.
From: Maxim MAX186/MAX188 Low-Power 8-Channel Serial 12-Bit ADC Datasheet
How low can the power‑down current be?
The devices can achieve a power‑down current below 10 µA at reduced sampling rates.
From: Maxim MAX186/MAX188 Low-Power 8-Channel Serial 12-Bit ADC Datasheet
What is the input voltage range for the MAX1864/MAX1865?
The controllers operate from 4.5 V to 28 V input.
From: Maxim MAX1864/MAX1865 Power Supply Controller Datasheet
How many positive outputs does the MAX1864 provide?
The MAX1864 generates three positive output voltages.
From: Maxim MAX1864/MAX1865 Power Supply Controller Datasheet
