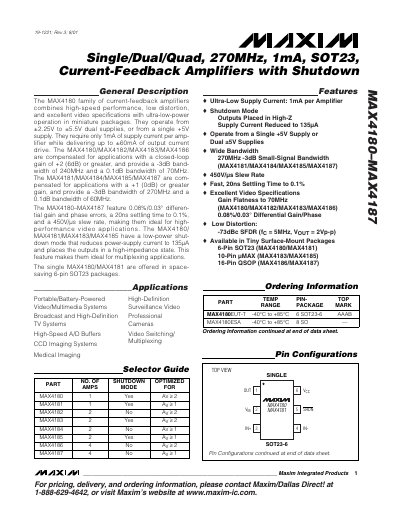

MAXIM MAX4180 MAX4187 handbook
The MAX4180 series from Maxim Integrated are current‑feedback amplifiers designed for high‑speed video and multimedia applications. They operate from ±2.25 V to ±5.5 V dual supplies or from a single +5 V supply, drawing only 1 mA per amplifier in normal mode and offering up to ±60 mA output current.
Key features include ultra‑low supply current, a shutdown mode that reduces consumption to 135 µA, bandwidths up to 245 MHz, a 450 V/µs slew rate, and a 20 ns settling time to 0.1 %.
Maxim MAX418 specifications
| Supply Voltage Range (dual) | ±2.25 V to ±5.5 V |
|---|---|
| Supply Voltage (single) | +5 V |
| Quiescent Supply Current (normal) | 1 mA per amplifier |
| Maximum Output Current | ±60 mA |
Source: MAXIM MAX4180 MAX4187 handbook
