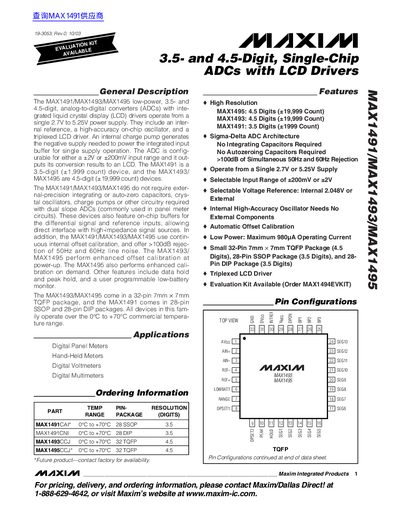

Maxim MAX1491/MAX1493/MAX1495 3.5- and 4.5-Digit ADC Datasheet
The MAX1491/MAX1493/MAX1495 family consists of low-power, 3.5- and 4.5-digit analog-to-digital converters (ADCs) featuring integrated liquid crystal display (LCD) drivers. These devices operate from a single 2.7V to 5.25V power supply and include an internal reference, a high-accuracy on-chip oscillator, and a triplexed LCD driver.
Key features of the MAX1491/MAX1493/MAX1495 family include >100dB rejection of 50Hz and 60Hz line noise, selectable input ranges of +2V or +200mV, and continuous internal offset calibration. The devices do not require external precision integrating or auto-zero capacitors, making them suitable for digital panel meters and hand-held multimeters.
Maxim MAX1495 specifications
| Resolution (MAX1495/MAX1493) | 4.5 Digits (+/-19,999 Count) |
|---|---|
| Resolution (MAX1491) | 3.5 Digits (+/-1,999 Count) |
| Operating Supply Voltage | 2.7V to 5.25V (Single) |
| Input Range Selection | +2V or +200mV |
| Power Supply Rejection (AVpp) | >80dB |
| Operating Temperature Range | 0°C to +70°C |
Source: Maxim MAX1491/MAX1493/MAX1495 3.5- and 4.5-Digit ADC Datasheet
All Maxim MAX1495 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating current?
The maximum operating current is 980uA.
From: Maxim MAX1491/MAX1493/MAX1495 3.5- and 4.5-Digit ADC Datasheet
Do these ADCs require external capacitors for auto-zeroing?
No, they do not require external precision integrating or autozeroing capacitors.
From: Maxim MAX1491/MAX1493/MAX1495 3.5- and 4.5-Digit ADC Datasheet
