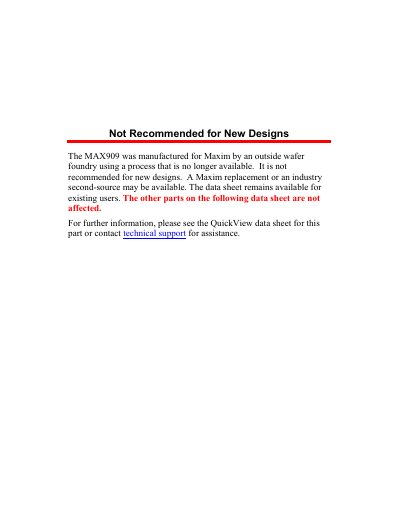

Maxim MAX907/MAX908/MAX909 High-Speed Ultra-Low-Power TTL Comparator Datasheet
The MAX907, MAX908 and MAX909 are high‑speed, ultra‑low‑power voltage comparators designed for single‑supply (+5 V) operation, with the MAX909 also supporting dual ±5 V supplies. They feature TTL‑compatible outputs, internal hysteresis, and short‑circuit protection on all inputs and outputs.
The devices are offered in 8‑pin DIP/SO (MAX907, MAX909) and 14‑pin DIP/SO (MAX908) packages, and are intended for battery‑powered systems, high‑speed A/D converters, line receivers, threshold detectors, and other fast‑switching applications.
Maxim MAX907 specifications
| Propagation Delay | 40 ns (typical) |
|---|---|
| Supply Current per Comparator | 700 µA (3.5 mW) |
| Supply Voltage Range | 4.5 V to 5.5 V (single‑supply); MAX909 also ±5 V |
| Input Common‑Mode Range | 200 mV below ground to 1.5 V below V+ (MAX909 extends to –5 V) |
| Output Type | TTL‑compatible (MAX909 complementary) |
| Internal Hysteresis | Yes, provides clean switching |
| Latch (MAX909 only) | Internal latch with transparent/hold modes |
Source: Maxim MAX907/MAX908/MAX909 High-Speed Ultra-Low-Power TTL Comparator Datasheet
All Maxim MAX907 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the MAX909 support a dual ±5 V supply?
Yes, the MAX909 can operate with a dual ±5 V supply in addition to single‑supply operation.
From: Maxim MAX907/MAX908/MAX909 High-Speed Ultra-Low-Power TTL Comparator Datasheet
What is the typical propagation delay of these comparators?
The typical propagation delay is 40 ns (typical) with a 5 mV input overdrive.
From: Maxim MAX907/MAX908/MAX909 High-Speed Ultra-Low-Power TTL Comparator Datasheet
What supply voltage range do the MAX9075 and MAX9077 support?
They operate from 2.1 V up to 5.5 V on a single supply.
From: Maxim MAX9075/MAX9077 Single-Supply Comparator Datasheet
How much supply current does each comparator draw?
Each comparator consumes about 3 µA of supply current.
From: Maxim MAX9075/MAX9077 Single-Supply Comparator Datasheet
