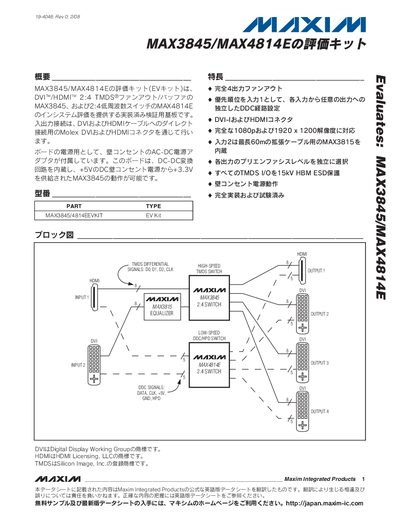

Maxim MAX3845/MAX4814E Evaluation Kit User Manual
The MAX3845/MAX4814E evaluation kit provides a fully implemented 4‑output fan‑out solution for HDMI/DVI signals, supporting 1080p and 1920 × 1200 resolutions. The board includes built‑in DC‑DC conversion, wall‑outlet AC power operation, and independent DDC configuration for each input.
The manual contains a quick‑start guide, parts list, block and circuit diagrams, layout drawings, and details on ESD protection, pre‑emphasis settings, and switch functions to configure the kit for various test scenarios. This manual is written in Japanese.
Maxim MAX384 specifications
| Maximum TMDS data rate | 1.65 Gbps |
|---|---|
| Supply voltage (VCC) | 3.0 V to 3.6 V |
| Package | 14 mm × 14 mm, 100‑Pin TQFP‑EP |
| Operating temperature range | -10 °C to +85 °C |
| Pre‑emphasis settings | 0 dB, 3 dB, 6 dB (extends reach up to 7 m) |
| Output drive current | 11 mA (standard) or 14 mA (increased) |
All Maxim MAX384 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum TMDS data rate supported by the MAX3845?
The MAX3845 operates up to 1.65 Gbps.
How can the output cable reach be extended?
Select the output pre‑emphasis setting, which can extend cable reach up to 7 m.
What supply voltage does the MAX3840 require?
The device operates from a single +3.3 V supply.
From: Maxim MAX3840 3.3V 2.7Gbps Dual 2x2 Crosspoint Switch Datasheet
How much power does the MAX3840 consume with all outputs enabled?
Typical power consumption is 460 mW when all outputs are enabled.
From: Maxim MAX3840 3.3V 2.7Gbps Dual 2x2 Crosspoint Switch Datasheet
What is the maximum data rate supported by the MAX3841?
The device operates up to 12.5 Gbps.
From: Maxim MAX3841 Datasheet
Which supply voltages can be used with the MAX3841?
CML inputs and outputs can be powered at 1.8 V, 2.5 V, or 3.3 V, while the core supply must be 3.3 V.
From: Maxim MAX3841 Datasheet
