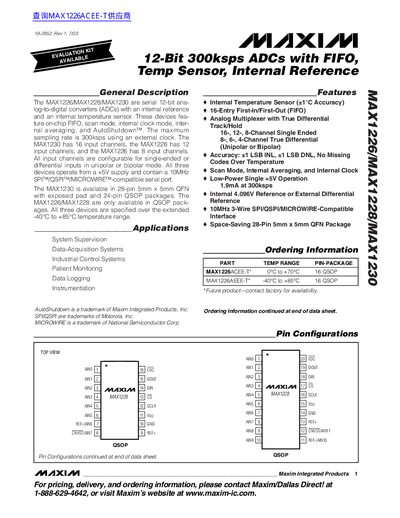

Maxim Integrated Products MAX1226/MAX1228/MAX1230 12-Bit ADC Datasheet
The MAX1226, MAX1228, and MAX1230 are serial 12-bit analog-to-digital converters (ADCs) featuring an internal reference and an internal temperature sensor. These devices include on-chip FIFO, scan mode, internal clock mode, internal averaging, and AutoShutdown functionality. The maximum sampling rate is 300ksps using an external clock.
Read onlineMaxim MAX122 specifications
| Resolution | 12 Bits |
|---|---|
| Maximum Sampling Rate | 300ksps |
| Supply Voltage | +5V |
| Temperature Range | -40°C to +85°C |
| Integral Nonlinearity | +1.0 LSB |
| Differential Nonlinearity | No missing codes |
| Signal-to-Noise Plus Distortion | 70 dB |
| Full-Power Bandwidth | 1 MHz |
Source: Maxim Integrated Products MAX1226/MAX1228/MAX1230 12-Bit ADC Datasheet
All Maxim MAX122 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the MAX1226/MAX1228/MAX1230?
The maximum sampling rate is 300ksps using an external clock.
From: Maxim Integrated Products MAX1226/MAX1228/MAX1230 12-Bit ADC Datasheet
Do these ADCs have an internal temperature sensor?
Yes, they feature an internal temperature sensor with +1°C accuracy.
From: Maxim Integrated Products MAX1226/MAX1228/MAX1230 12-Bit ADC Datasheet
What is the maximum throughput rate for the MAX120?
The MAX120 has a throughput rate as high as 500ksamples per second (ksps).
What is the maximum throughput rate for the MAX122?
The MAX122 achieves throughput rates of 333ksps with a 2.6us conversion time.
What is the maximum sampling rate of the MAX1226/1228/1230?
The devices can sample up to 300 ksps when using an external clock.
How many input channels does each model have?
The MAX1230 has 16 channels, the MAX1228 has 12 channels, and the MAX1226 has 8 channels.
