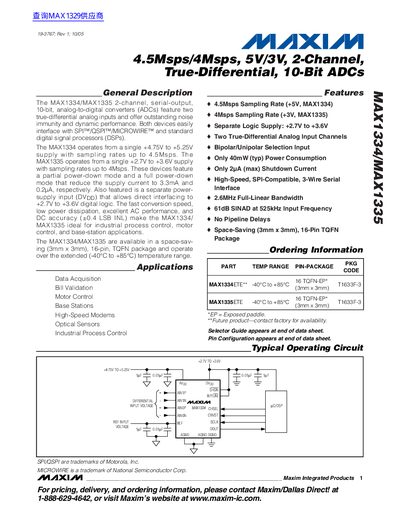

Maxim MAX1334/MAX1335 2-Channel ADC Datasheet
Datasheet 23 pages · 262 KB · EN
The document details two high-speed, serial-output ADCs: the MAX1334 operating from a +4.75V to +5.25V supply at up to 4.5Msps, and the MAX1335 operating from a +2.7V to +3.6V supply at up to 4Msps. Both devices feature two true-differential analog inputs and offer outstanding noise immunity.
Read onlineMaxim MAX1334 specifications
| Resolution | 10 Bits |
|---|---|
| Sampling Rate (MAX1334) | 4.5Msps |
| Sampling Rate (MAX1335) | 4Msps |
| Supply Voltage (MAX1334) | +4.75V to +5.25V |
| Supply Voltage (MAX1335) | +2.7V to +3.6V |
