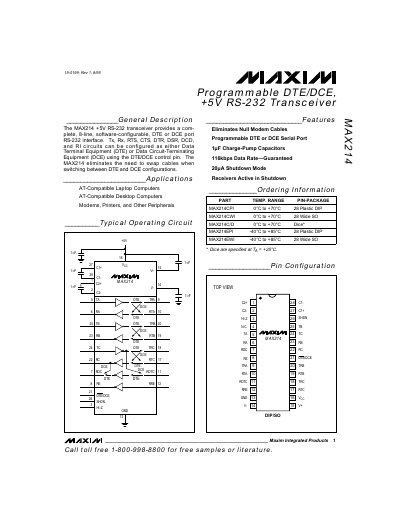

Maxim MAX214 RS-232 Transceiver Datasheet
The MAX214 provides a complete 8‑line RS‑232 interface that can be programmed as either DTE or DCE via a control pin, eliminating the need for separate null‑modem cables. It operates from a single +5 V supply and includes dual charge‑pump converters to generate the required ±10 V levels.
Key features include a guaranteed 116 kbps data rate, shutdown current as low as 4 µA, and configurable HI‑Z inputs for flexible multi‑receiver applications. The device is offered in DIP and SO packages with a wide operating temperature range.
Maxim MAX214 specifications
| Supply Voltage (VCC) | 4.5 V to 5.5 V |
|---|---|
| Maximum Data Rate | 116 kbps |
| Shutdown Supply Current | ≈4 µA |
| Typical Driver Output Swing | ±8 V |
All Maxim MAX214 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the MAX214?
The MAX214 supports a guaranteed data rate of up to 116 kbps.
What supply voltage does the MAX214 require?
It operates from a single +5 V supply with VCC specified from 4.5 V to 5.5 V.
What interface is used to program the MAX2140?
The MAX2140 is programmed via a 2‑wire I²C‑compatible serial interface.
What is the recommended power‑supply layout for the MAX2140?
Use a star configuration with a large decoupling capacitor at a central VCC node and local bypass capacitors at each VCC pin.
