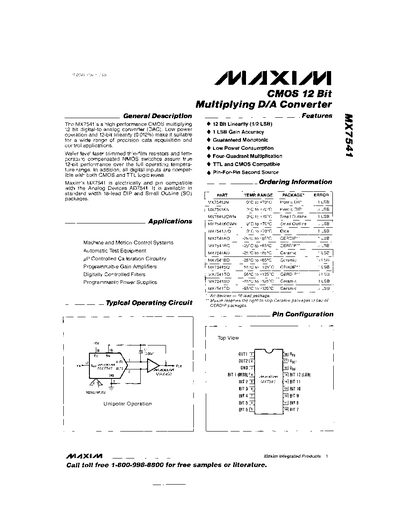

Maxim Integrated Products MX7541 CMOS Multiplying DAC Datasheet
The Maxim MX7541 is a high performance CMOS multiplying 12 bit digital-to-analog converter (DAC). It features low power operation and 12-bit linearity, making it suitable for precision data acquisition and control applications. The device uses wafer level laser trimmed thin-film resistors and temperature compensated NMOS switches to assure true 12-bit performance over the full operating temperature range.
Read onlineMaxim MX7541 specifications
| Resolution | 12 Bits |
|---|---|
| Linearity | 0.012% |
| Gain Accuracy | 1 LSB |
| Monotonicity | Guaranteed Monotonic |
| Power Supply Rejection (PSRR) | -145V to +15.5v |
| Operating Temperature Range (Commercial) | -0°C to +70°C |
Source: Maxim Integrated Products MX7541 CMOS Multiplying DAC Datasheet
All Maxim MX7541 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the MX7541 compatible with other manufacturers' parts?
Yes, it is electrically and pin compatible with the Analog Devices AD7541.
From: Maxim Integrated Products MX7541 CMOS Multiplying DAC Datasheet
What logic levels are supported by the digital inputs?
All digital inputs are compatible with both CMOS and TTL logic levels.
From: Maxim Integrated Products MX7541 CMOS Multiplying DAC Datasheet
What type of device is the MX7541A?
The MX7541A is a 12‑bit multiplying digital‑to‑analog converter.
Where can I find the latest package outline for the MX7541A?
The latest package outline is available on Maxim’s website at www.maxim-ic.com/packages.
