Start here

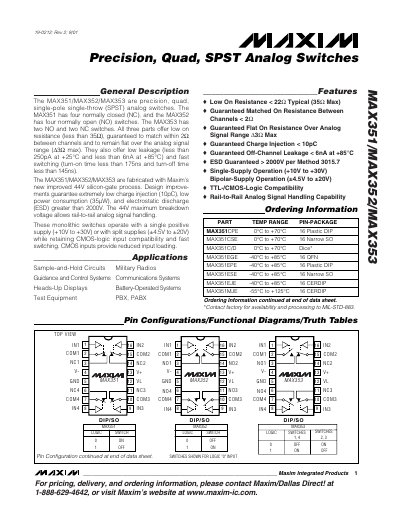

Maxim MAX351/MAX352/MAX353 Precision Quad SPST Analog Switches Datasheet
The MAX351, MAX352 and MAX353 are precision, quad, single‑pole single‑throw (SPST) analog switches fabricated with Maxim’s 44 V silicon‑gate process. The MAX351 provides four normally‑closed (NC) switches, the MAX352 four normally‑open (NO) switches, and the MAX353 offers two NO and two NC switches. All devices feature low on‑resistance, low leakage, fast switching, and high ESD protection, and they operate from a single‑supply (+10 V to +30 V) or bipolar supplies (±4.5 V to ±20 V).
The datasheet details absolute maximum ratings, electrical characteristics (on‑resistance, leakage currents, charge injection, supply currents), pin configurations for DIP, SO and QFN packages, and application information such as sample‑and‑hold circuits, military radios and test equipment. Test circuit diagrams and package drawings are also provided for design reference.
Maxim MAX353 specifications
| On‑Resistance (RON) Typical | < 22 Ω |
|---|---|
| On‑Resistance (RON) Maximum | 35 Ω |
| On‑Resistance Match Between Channels | < 2 Ω |
| Leakage Current (Off‑Channel) at +85 °C | < 6 nA |
| Leakage Current (Off‑Channel) at +25 °C | < 250 pA |
| Charge Injection | < 10 pC |
| ESD Rating | > 2000 V (Method 3015.7) |
| Supply Voltage Range (Single‑Supply) | +10 V to +30 V |
| Supply Voltage Range (Bipolar) | ±4.5 V to ±20 V |
| Maximum Breakdown Voltage | 44 V |
Source: Maxim MAX351/MAX352/MAX353 Precision Quad SPST Analog Switches Datasheet
All Maxim MAX353 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical on‑resistance of the MAX351/352/353 switches?
The typical on‑resistance is less than 22 Ω (maximum 35 Ω).
From: Maxim MAX351/MAX352/MAX353 Precision Quad SPST Analog Switches Datasheet
How much ESD protection do the switches provide?
They are rated for greater than 2000 V ESD per IEC Method 3015.7.
From: Maxim MAX351/MAX352/MAX353 Precision Quad SPST Analog Switches Datasheet
