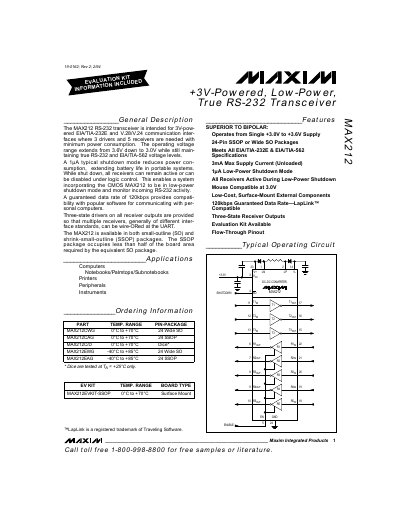

Maxim MAX212 RS-232 Transceiver Datasheet
The MAX212 RS‑232 transceiver from Maxim operates from a single 3.0 V to 3.6 V supply and provides true RS‑232 voltage levels while consuming minimal power. It features three drivers and five receivers, a guaranteed 120 kbps data rate, and a shutdown mode that reduces supply current to 1 µA, extending battery life in portable applications.
The device is offered in 24‑pin SSOP and wide‑SO packages and includes an evaluation kit for quick testing. Detailed electrical, timing, and pin‑description specifications are provided, along with guidelines for interfacing to 5 V logic and driving serial mice.
Maxim MAX212 specifications
| Operating Voltage Range | 3.0 V to 3.6 V |
|---|---|
| Shutdown Supply Current | 1 µA |
| Supply Current (unloaded) | 1.5 mA to 3.0 mA |
| Data Rate (guaranteed) | 120 kbps |
| Package Types | 24‑pin SSOP or Wide SO |
| Number of Drivers / Receivers | 3 drivers, 5 receivers |
