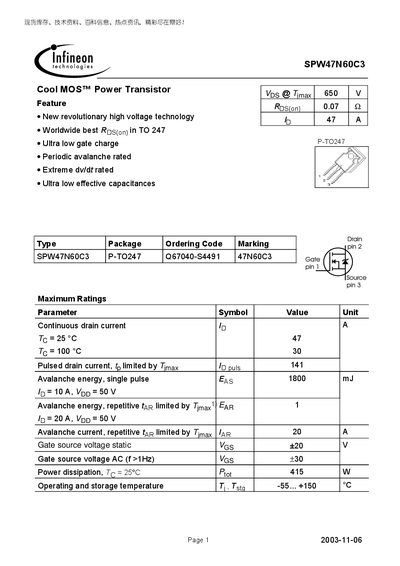

SPW47N60C3 is a Cool MOS™ Power Transistor with a rated junction temperature of 650V, RDS(on) 0.07 Ohm, ID 47 A. Product features include: new revolutionary high voltage technology, world's best RDS(on) in TO 247, ultra low gate charge, periodic avalanche rating, extreme dv/dt rating, ultra low effective capacitances.
The SPW47N60C3 is a Cool MOS™ power transistor offered in a P‑TO‑247 package. It features a high‑voltage (650 V) rating, ultra‑low gate charge, and low on‑state resistance, making it suitable for high‑power switching applications.
The document lists maximum ratings, thermal characteristics, electrical parameters, and typical performance curves such as output characteristics, gate‑charge, and switching times. It also includes package dimensions and safety notices for life‑support device usage.
| Gate‑Source Voltage (Static) | +20 V |
|---|---|
| Power Dissipation (25 °C) | 415 W |
| Operating Temperature Range | -55 °C to +150 °C |
| Avalanche Energy (single pulse) | 1800 mJ |
The transistor can dissipate up to 415 W at an ambient temperature of 25 °C.
